Brom Aoroplasty for Supravalvar Aortic Stenosis

Brom’s three-patch aortoplasty is indicated for the repair of supravalvar aortic stenosis, which can occur as an isolated defect or as a part of Williams syndrom.  This syndrome is characterized by supravalvar aortic stenosis, elfin craniofacial features, peripheral pulmonary artery stenosis, and hypercalcemia.

Patient Selection

Brom’s three-patch aortoplasty is indicated for the repair of supravalvar aortic stenosis, which can occur as an isolated defect or as a part of Williams syndrom [1].  This syndrome is characterized by supravalvar aortic stenosis, elfin craniofacial features, peripheral pulmonary artery stenosis, and hypercalcemia.  The underlying cause is a loss of function mutation of the elastin gene on chromosome 7q11.23. These patients will have a systolic cardiac murmur and two-dimensional echocardiography can establish the diagnosis.  Cardiac catheterization is indicated to evaluate the status of the coronary arteries and assess the pulmonary arterial tree for related peripheral stenosis.

Indications for surgery include symptoms of diminished exercise tolerance, syncope, or angina.  Other indications would include 1) systolic ascending aorta gradient greater than 50 mm Hg, 2) aortic valve insufficiency, or 3) evidence of compromised coronary artery perfusion.  These patients should undergo surgery at a relatively early age because of the detrimental effect of the high proximal aortic pressure on the coronary arteries with the possibility for accelerated atherosclerotic changes.  These patients typically have a thickening of the aortic wall at the sinotubular junction.  This abnormal thickening may extend into the ascending aorta and even into the aortic arch.  In some patients, this abnormal thickening creates stenosis of the coronary ostium.

The surgical history of operations for supravalvar aortic stenosis is shown in Table 1.   Dwight McGoon and John Kirklin [2] from the Mayo Clinic first reported a one-patch teardrop-type repair of supravalvar aortic stenosis in 1961.  Donald Doty [3] reported the use of an inverted Y-shaped patch which extended into two of the aortic valve sinuses in 1977.  The technique described in this monograph is that of A. Gerard Brom, [4] with three patches placed into the three aortic valve sinuses.  This frequently also requires a patch in the distal ascending aorta.  Most recently, John Myers [5] described an approach with three incisions into the three coronary sinuses and corresponding counterincisions into the distal ascending aorta which then insert into the openings created in the proximal ascending aorta.  This technique has the advantage of not requiring autologous patch material, but is technically more demanding.

Table 1: Surgical History of Operations for Supravalvar Aortic Stenosis

An asymptomatic, 5-year-old, 18-kg boy known by genetic testing to have Williams syndrome on physical examination had a IV/VI harsh systolic ejection murmur and no diastolic murmur.  Preoperative echocardiogram showed an aortic root dimension of 2 cm and the dimension at the level of stenosis in the ascending aorta was 8 mm.  Peak echocardiogram gradient was 70 mm Hg with a cardiac catheterization gradient of 50 mm Hg.  The child had no peripheral pulmonary artery stenosis.

Operative Steps

Figure 1

An asymptomatic, 5-year-old, 18-kg boy known by genetic testing to have Williams syndrome on physical examination had a IV/VI harsh systolic ejection murmur and no diastolic murmur. Preoperative echocardiogram showed an aortic root dimension of 2 cm and the dimension at the level of stenosis in the ascending aorta was 8 mm. Peak echocardiogram gradient was 70 mm Hg with a cardiac catheterization gradient of 50 mm Hg. The child had no peripheral pulmonary artery stenosis.

Preoperative transesophageal echocardiogram in long-axis view shows ascending aorta with aortic valve to the left. The markers indicate the aoritc root dimension to be 2.0 cm and hte mid portion of the stenosis to be 0.8 cm.

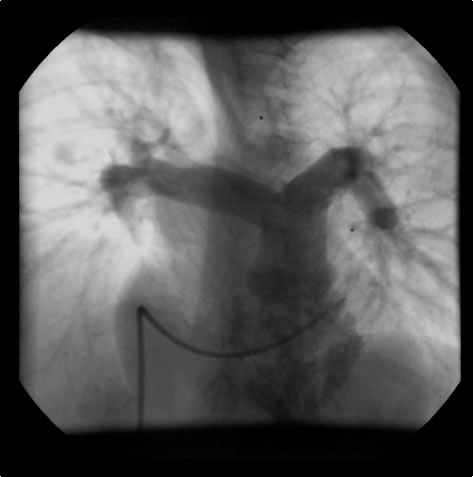

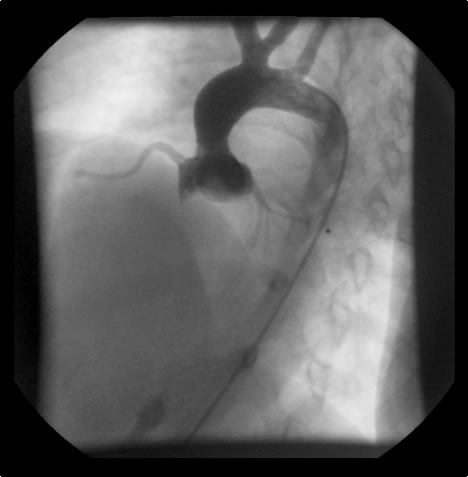

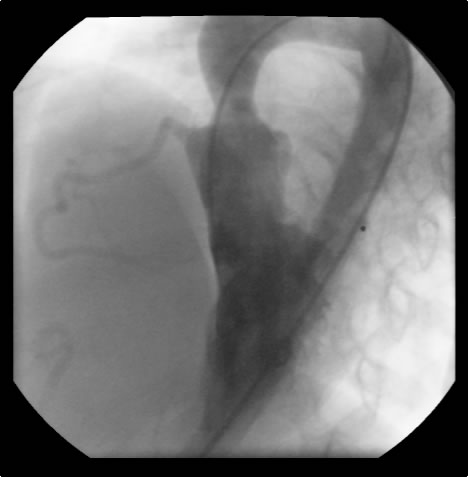

Figure 2: Preoperative cardiac catheterization.	Figure 3:The "waist" in the ascending aorta is readily apparent. The "waist" is above coronary orifices.	Figure 4: AP/Lateral ventriculogram. The patien has no subaortic obstruction.	Figure 5: Main pulmonary artery injection. There is no peripheral pulmonary artery stenosis.

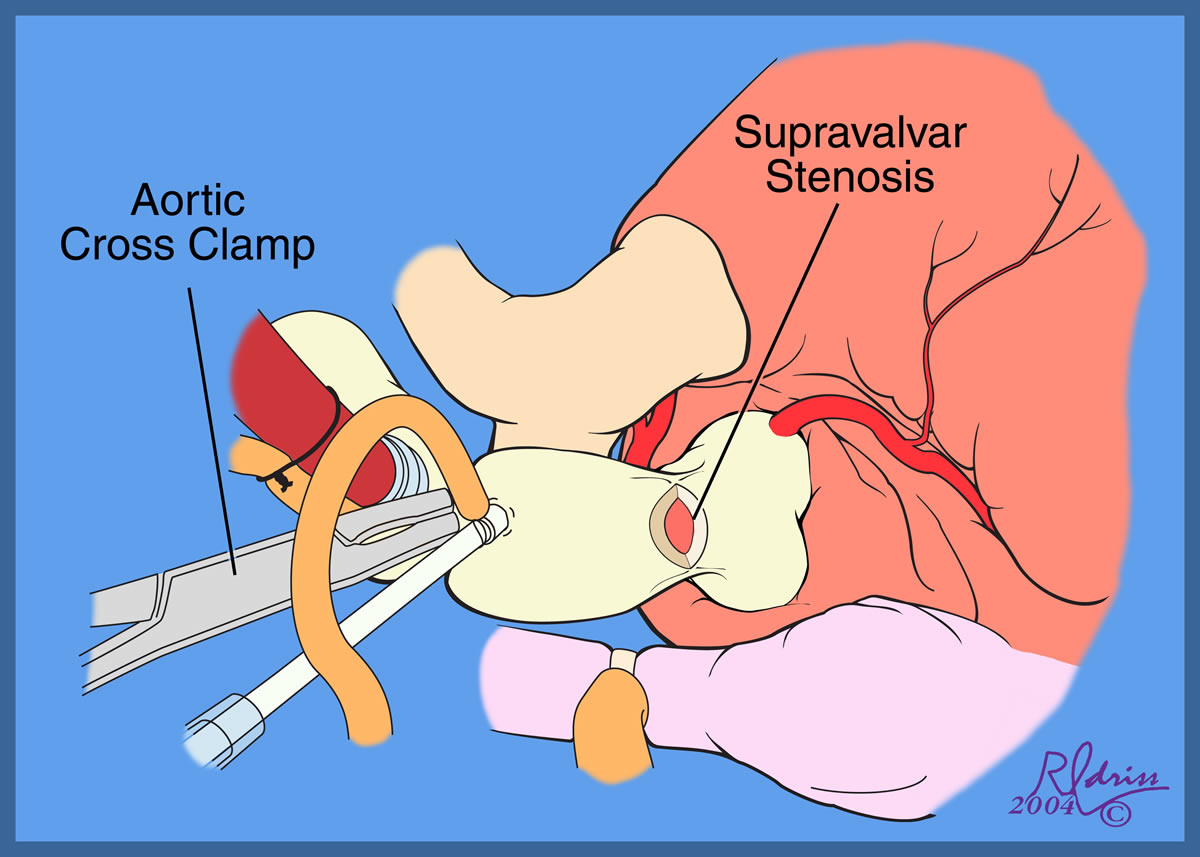

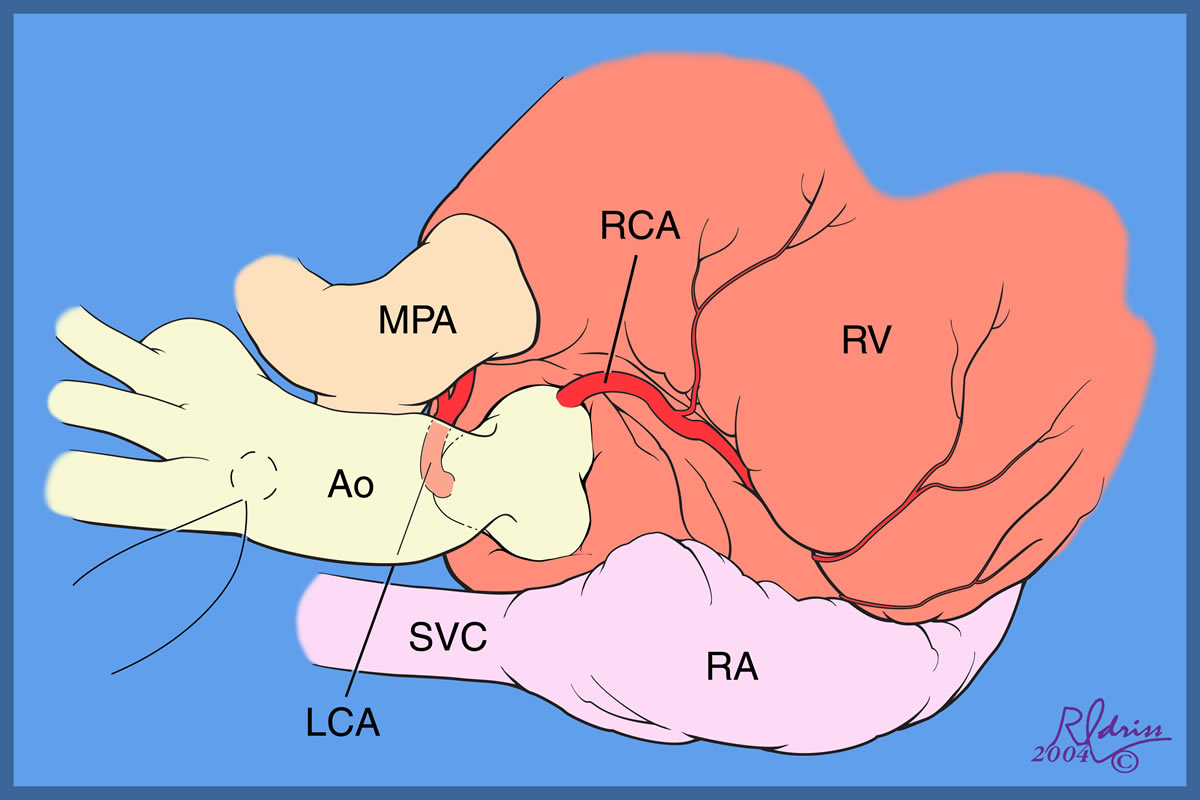

The operative approach is through a median sternotomy with the use of cardiopulmonary bypass and bicaval venous cannulation. The first dose of cold blood cardioplegia is antegrade; the remaining doses are retrograde.

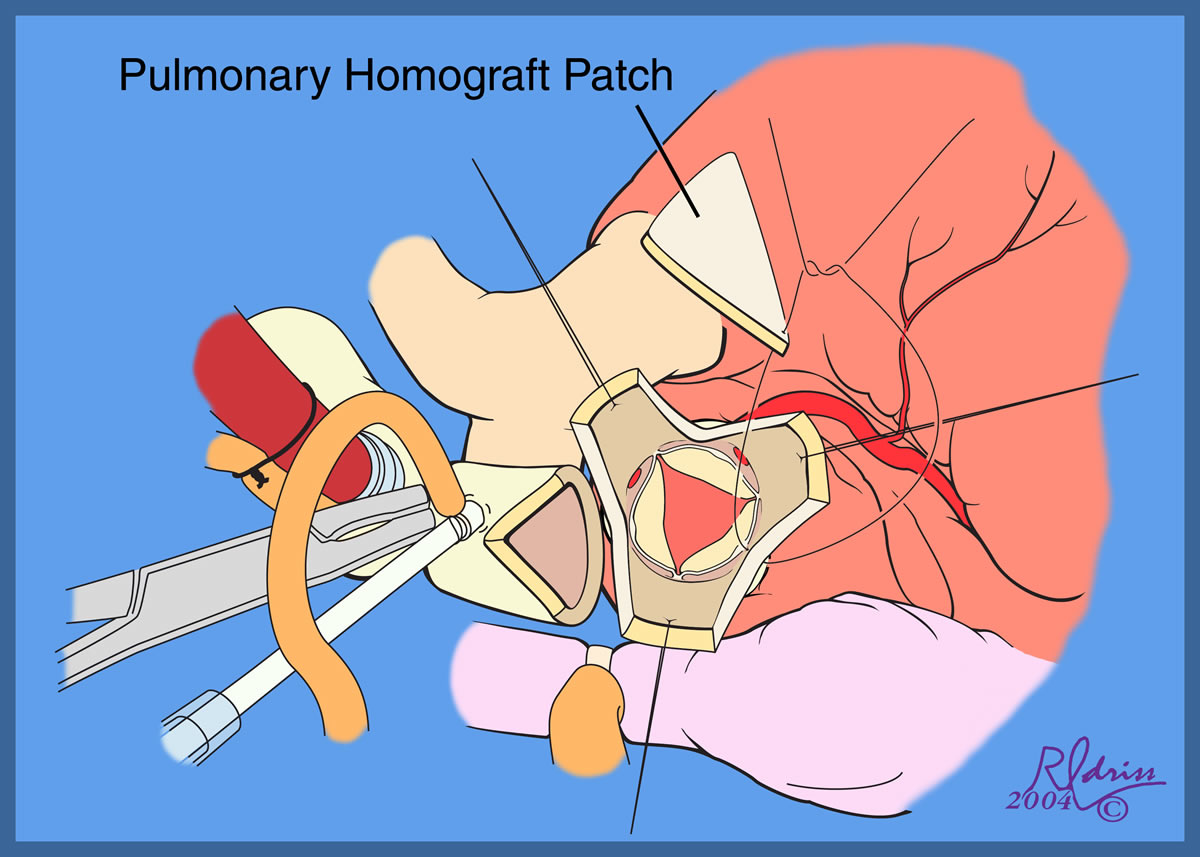

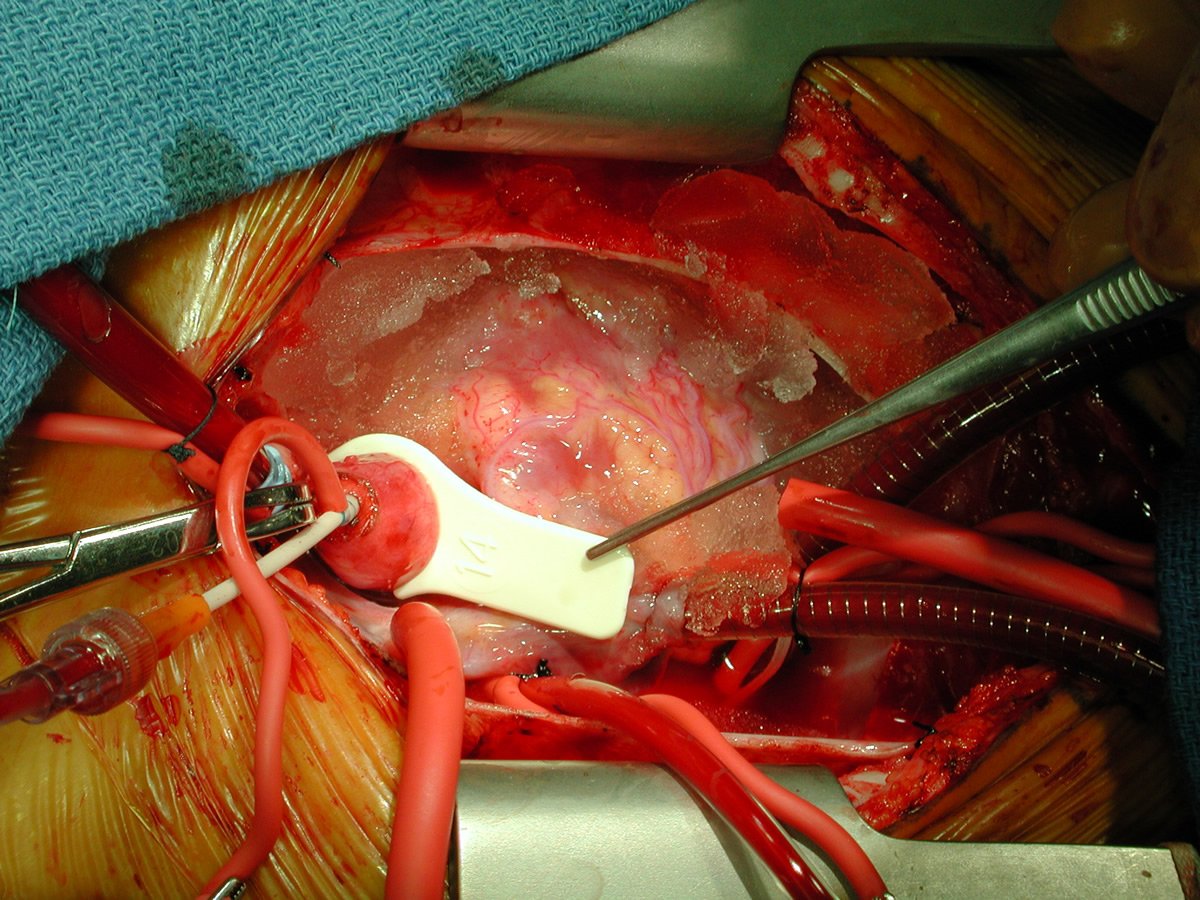

Figure 5: Main pulmonary artery injection. There is no peripheral pulmonary artery stenosis.	Figures 6 & 7: High aortic cannulation near innominate artery.		Figure 8: Pulmonary homograft patch

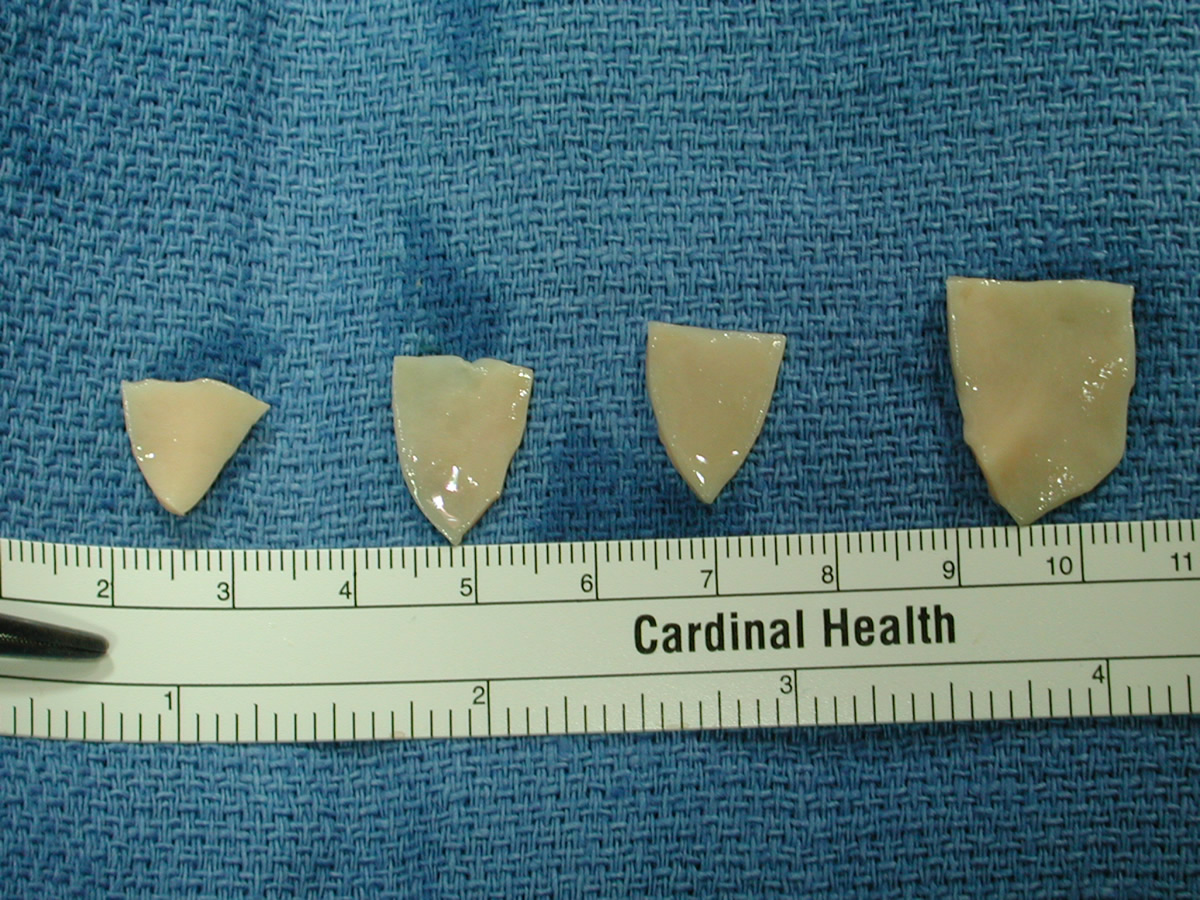

Figure 9: "Shield"-shaped patches for three coronary incisions and ascending aorta incision.	Figure 10: "Normal" sized distal ascending aorta; 14-mm sizer.	Figure 11: "Waist" at center of maximal stenosis proximal ascending aorta; 7-mm sizer.

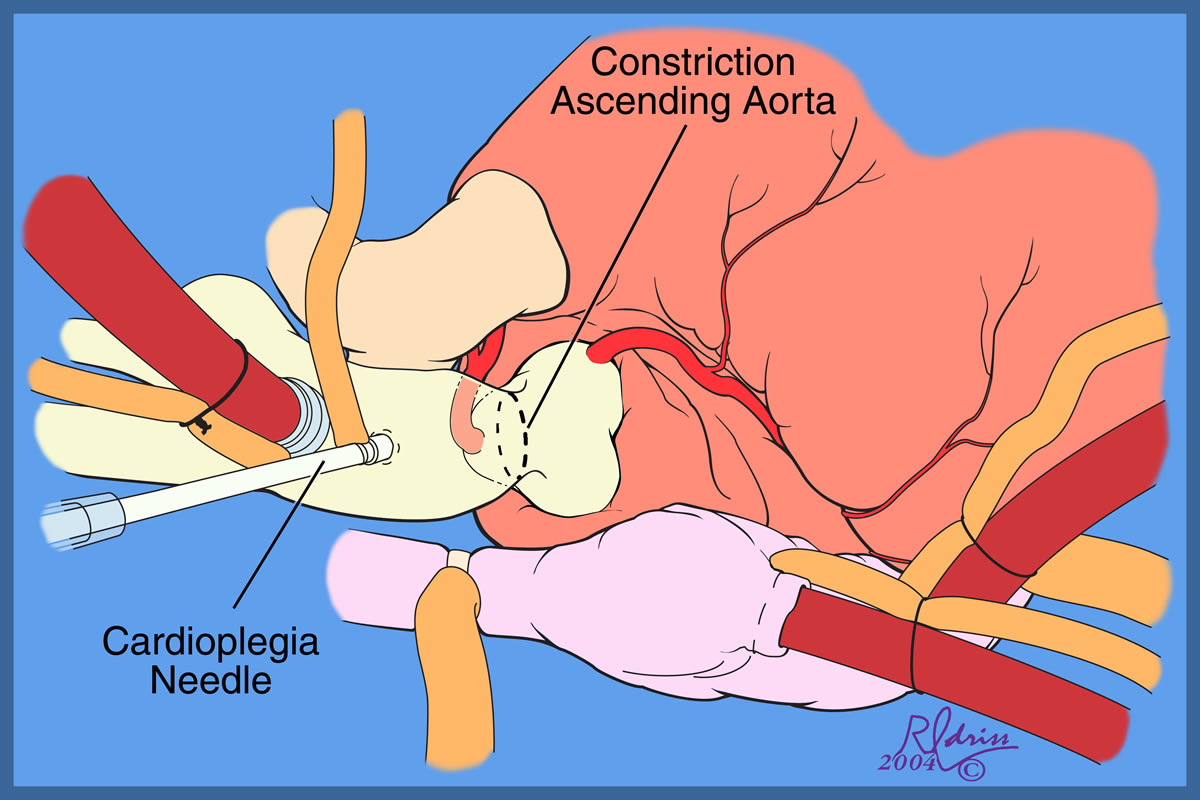

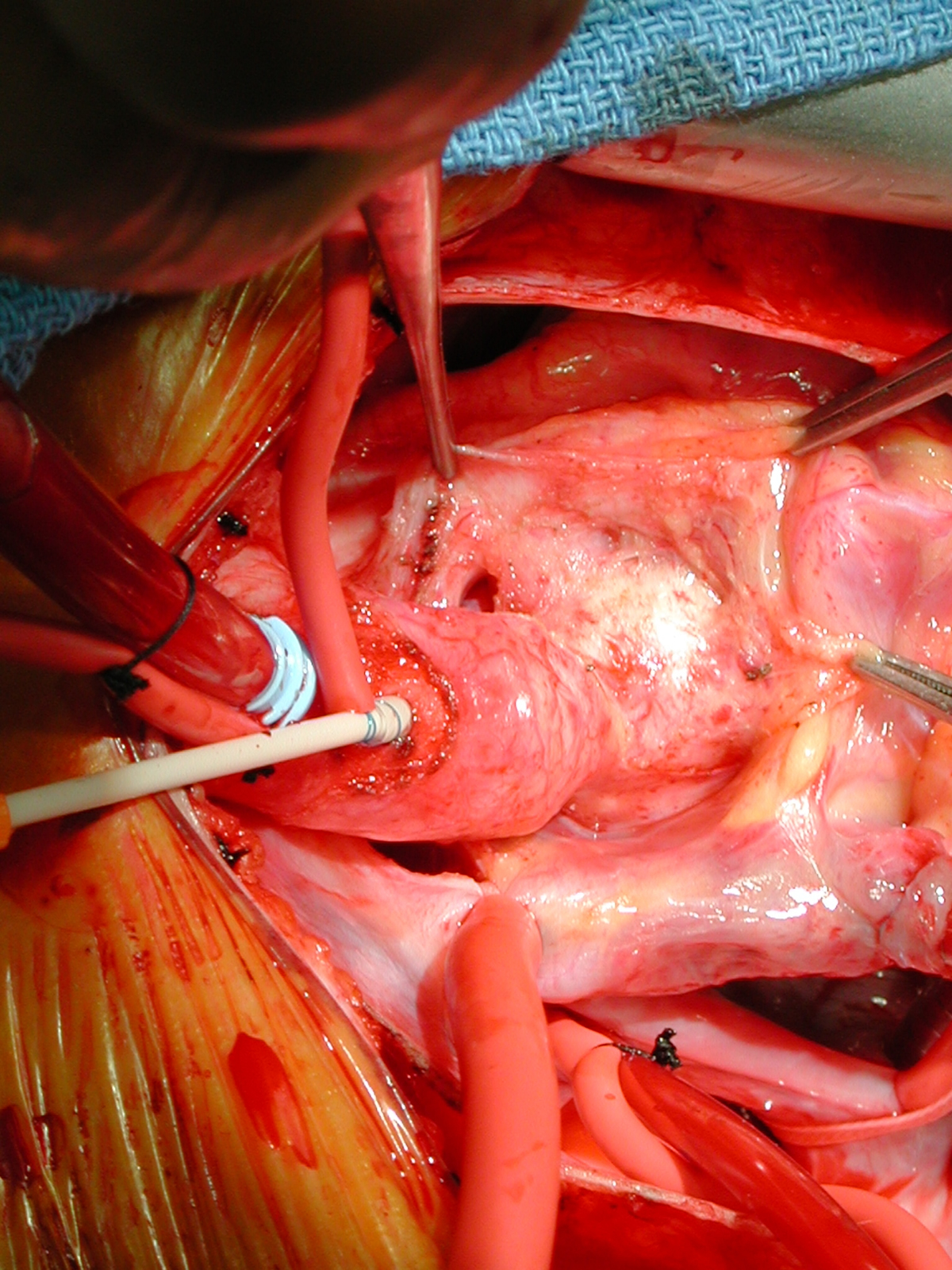

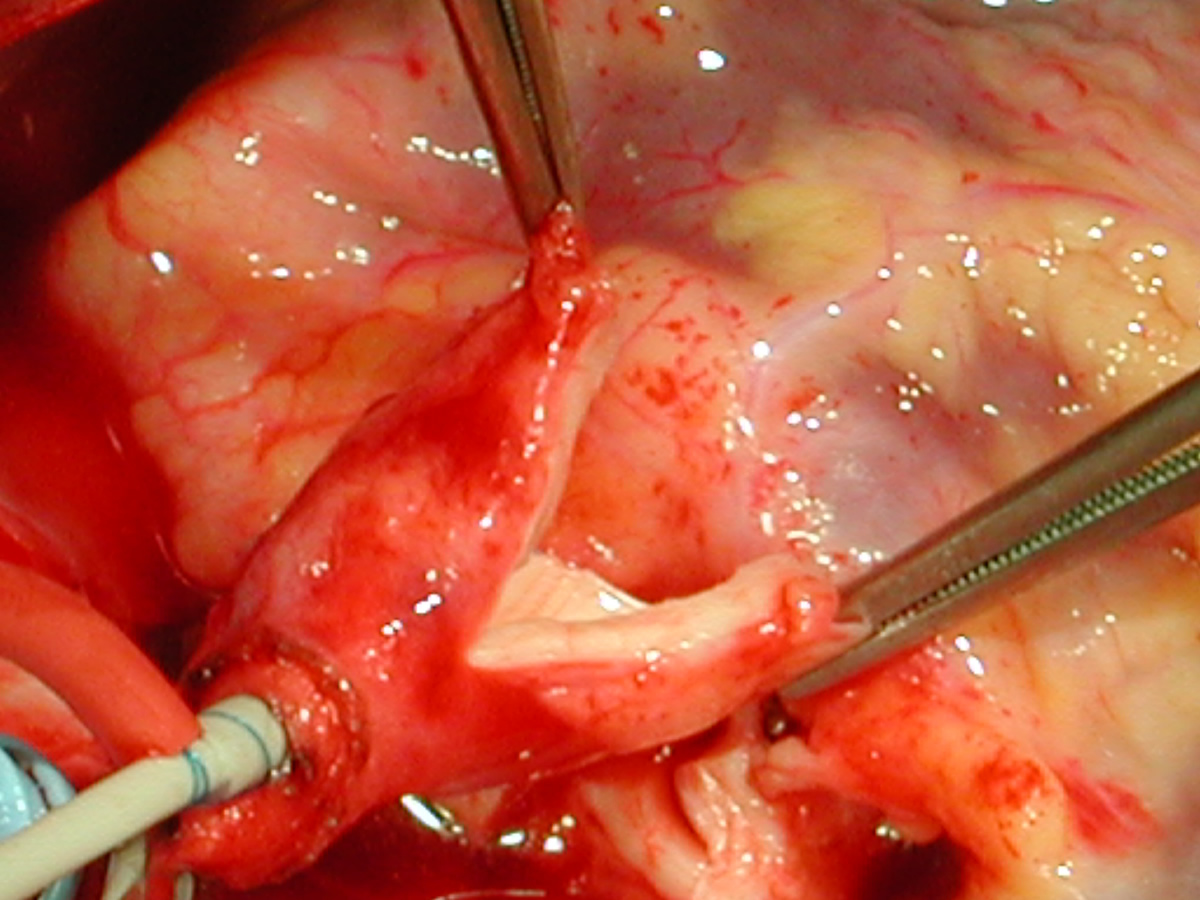

Figures 12 & 13: Cardioplegia needle		Figures 14 & 15: Transverse incision ascending aorta after initial antegrade does of cardioplegia. This incision is made several mm distal to the area of meximal stenosis.

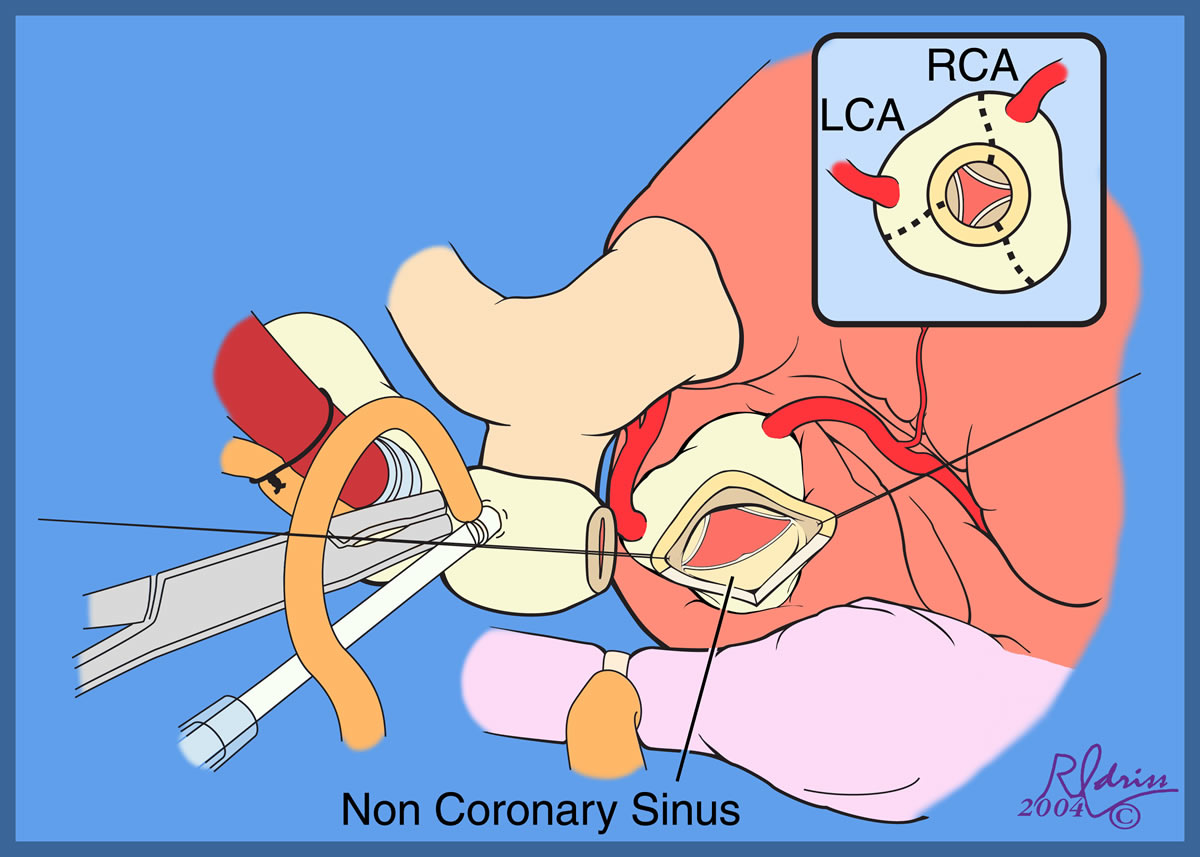

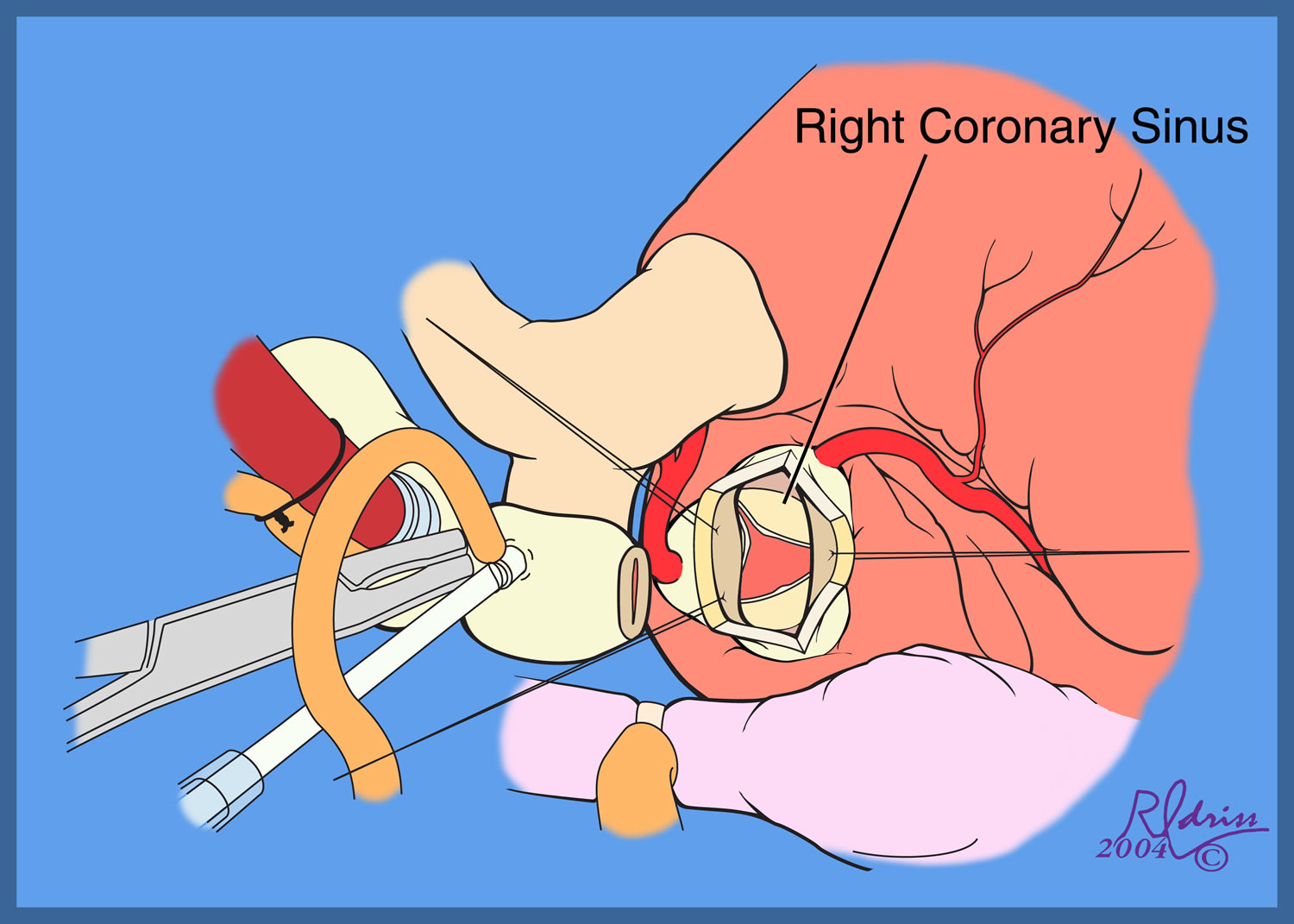

Figures 16 & 17: First incision is in noncoronary sinus - this opens aorta and improves access to visualize cornoary orifices for the next incisions. This is an important point as the surgeon's view of the coronary orifices from above is severely restricted until this first incision is made.		Figures 18 & 19: Second incision is in the right coronary sinus and is typically made to the "left" of the right coronary artery.

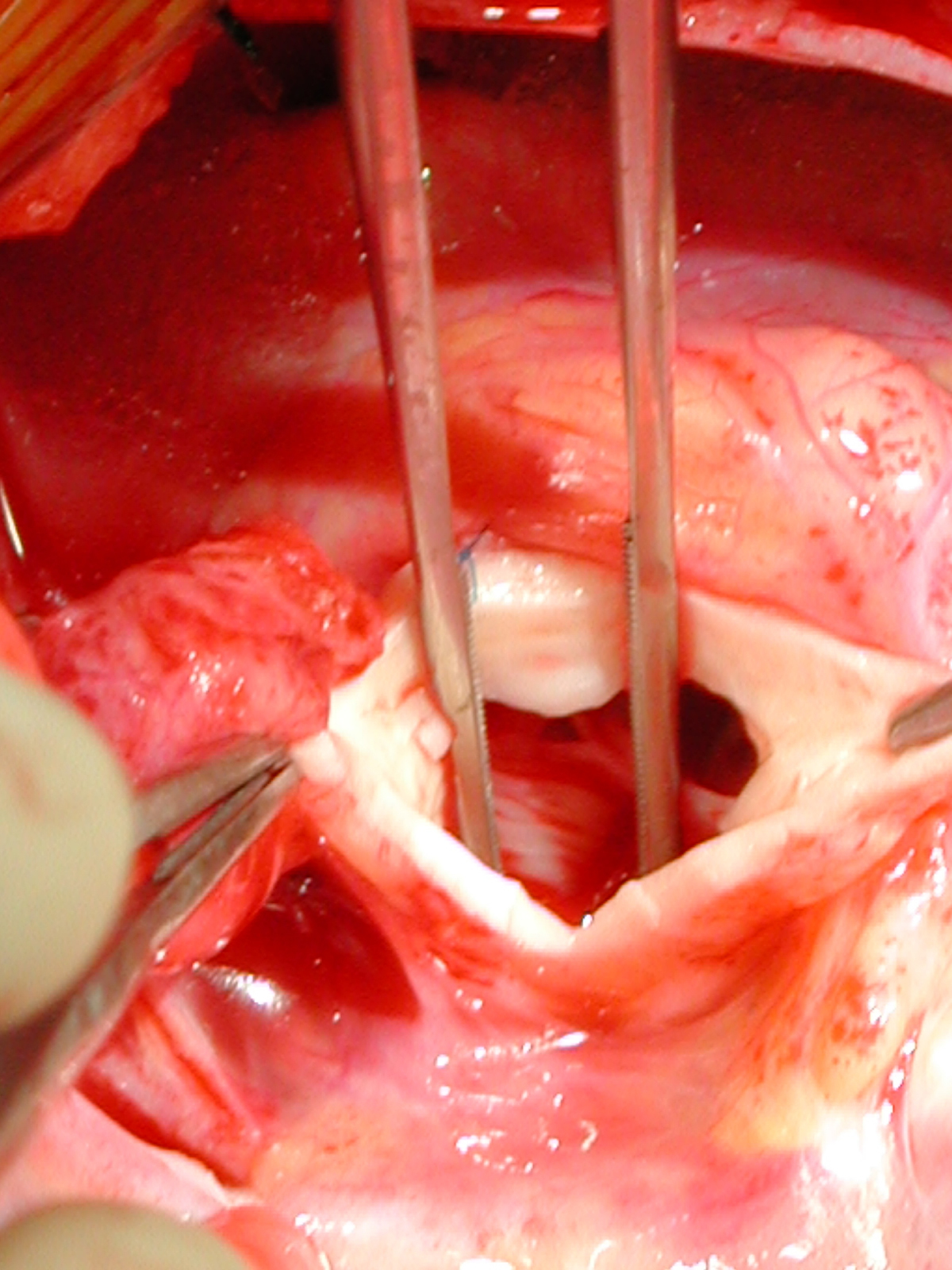

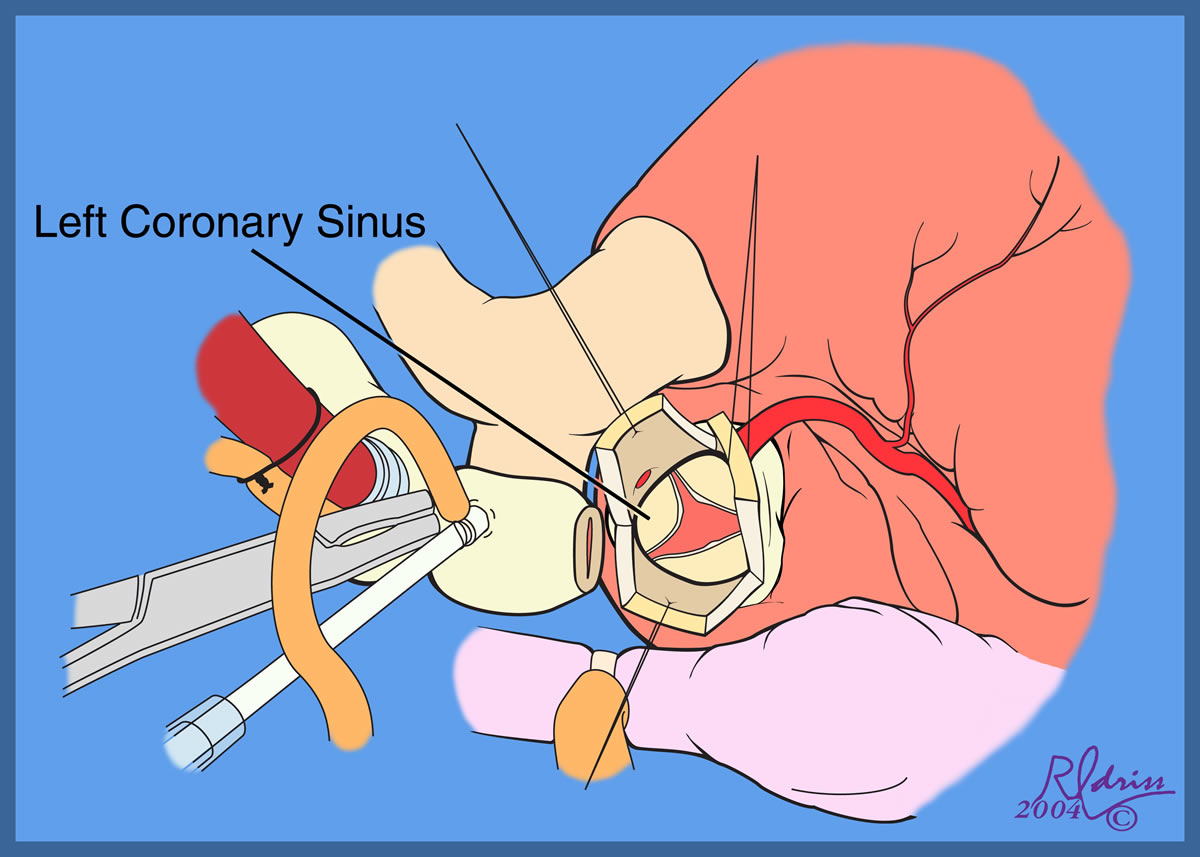

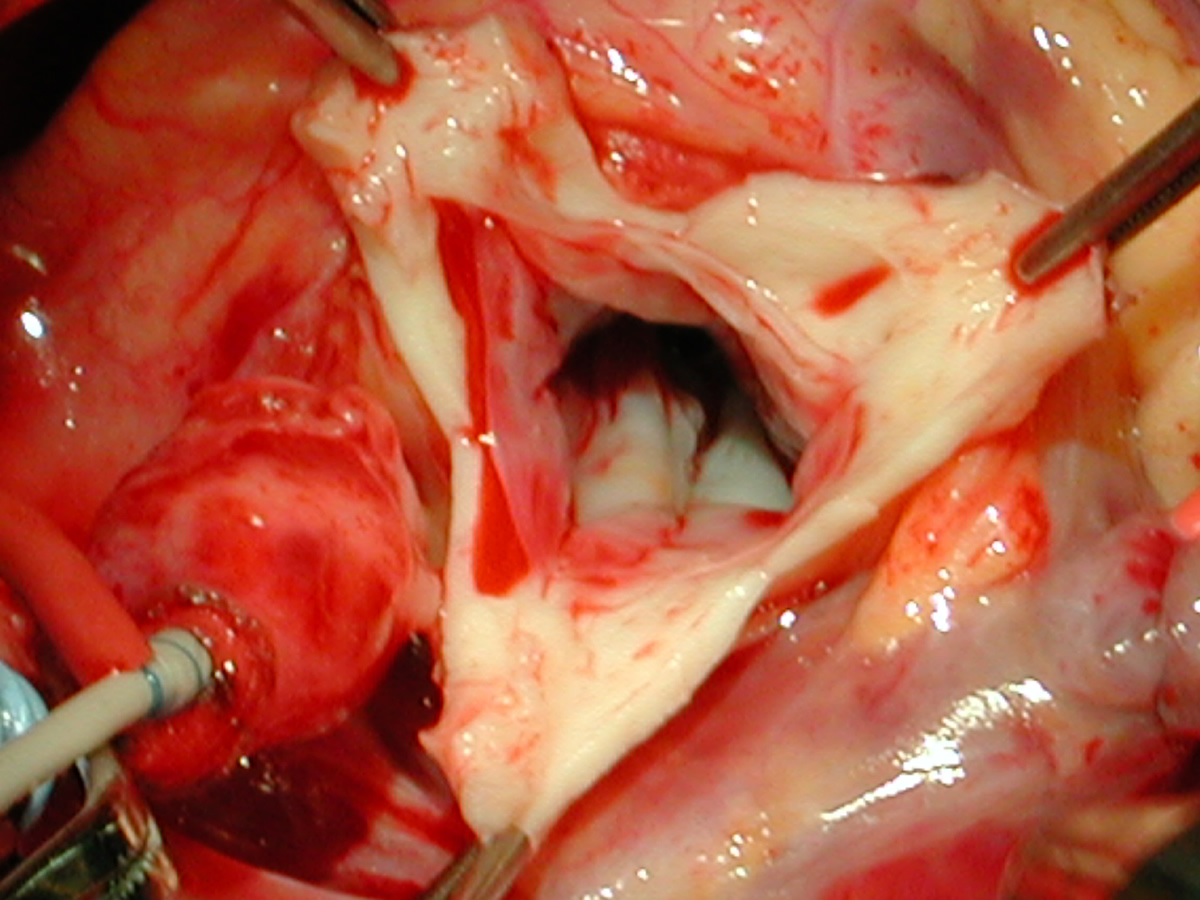

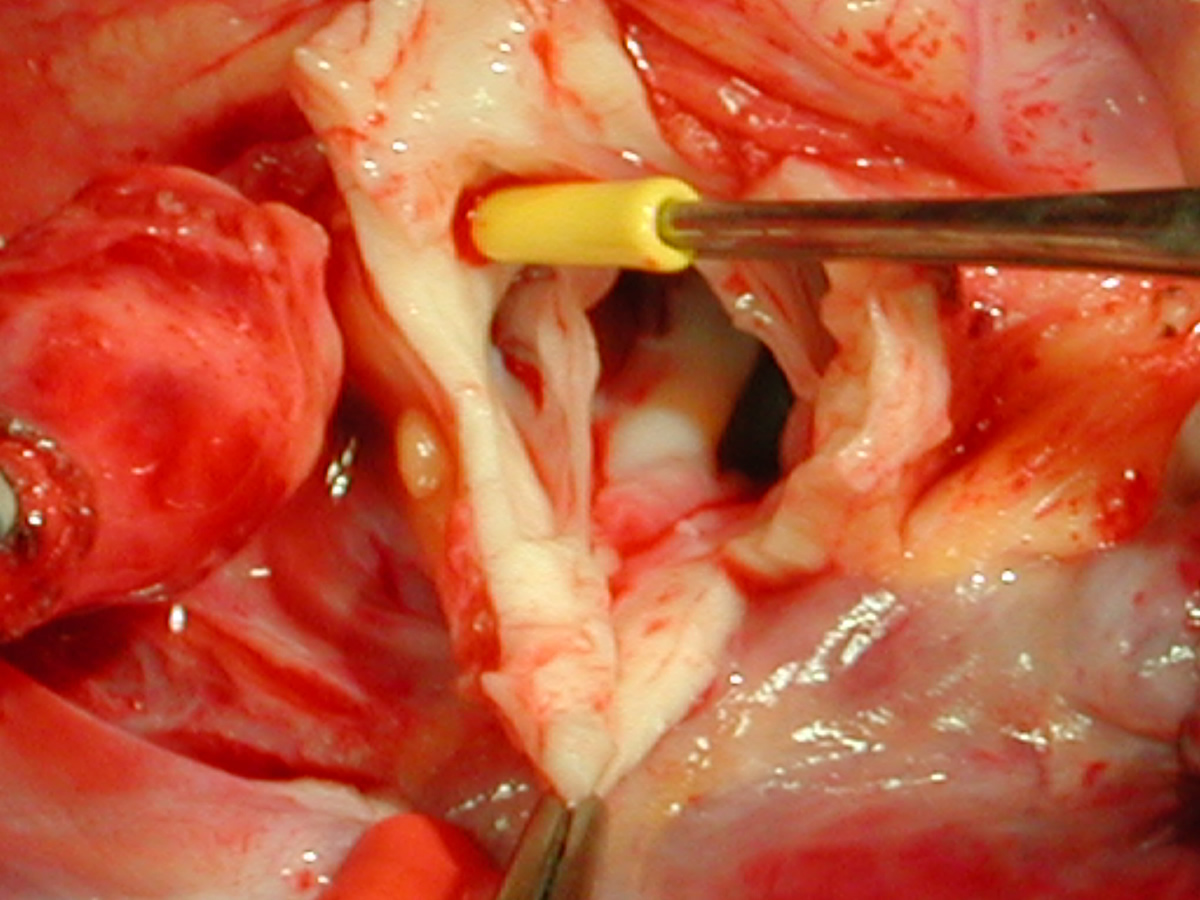

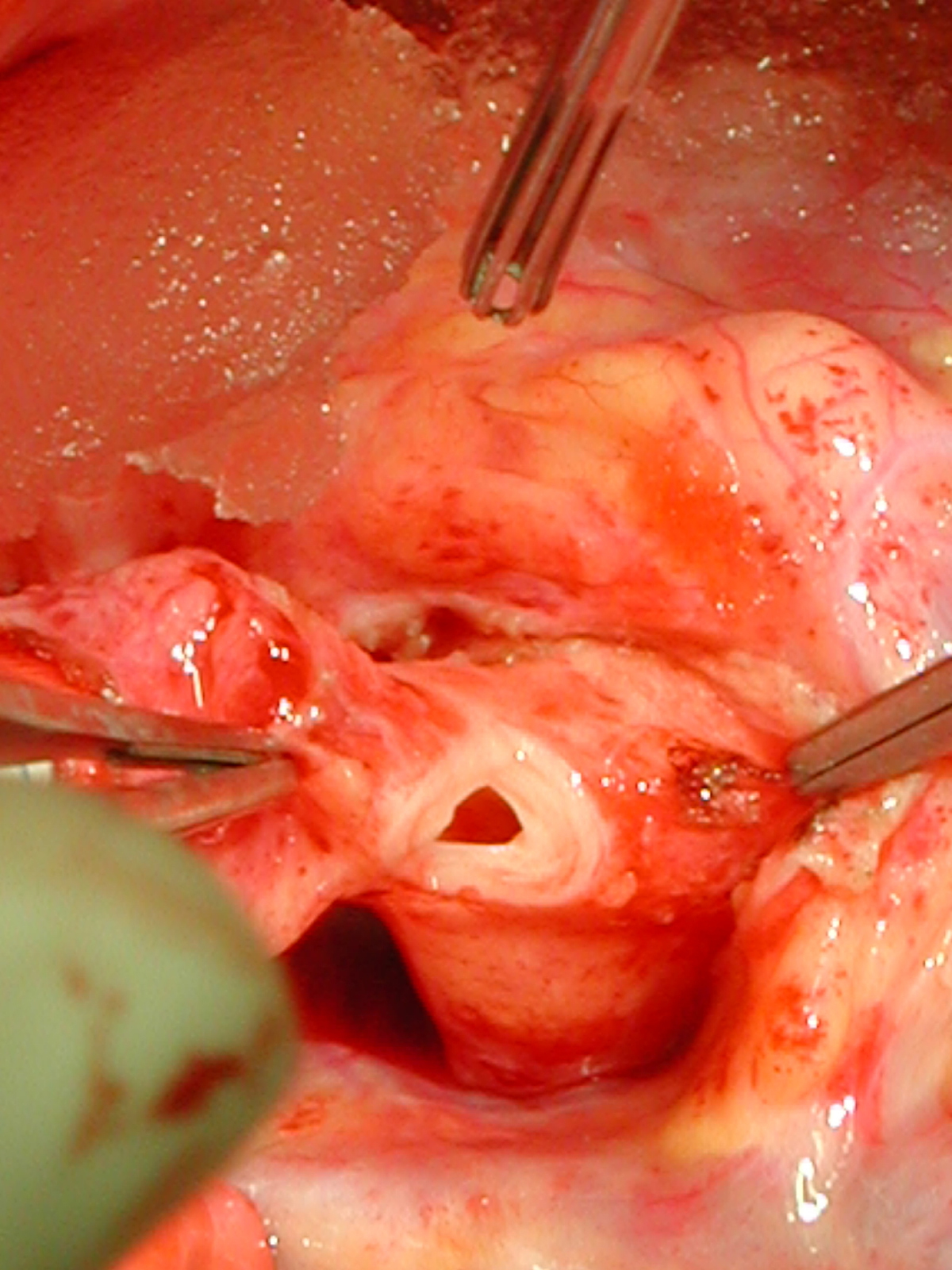

Figures 20 & 21: Third incision has been made to the right of the left coronary orifice. They yellow plastic suture boot on the pickup is pointing out the left coronary orifice.		Figures 22 & 23: Proximal ascending aorta now opens widely, revealing the right and left coronary orifices and the normal trileaflet aortic valve below.

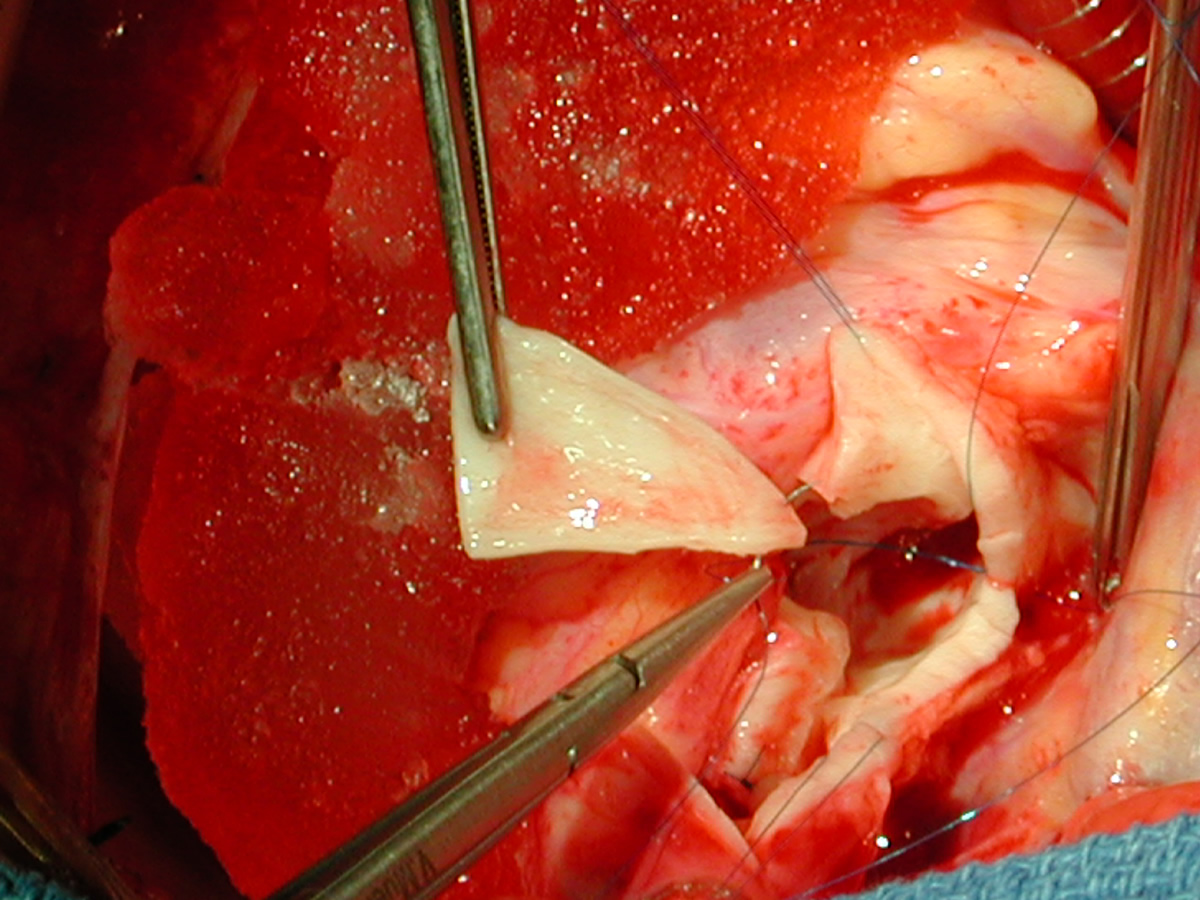

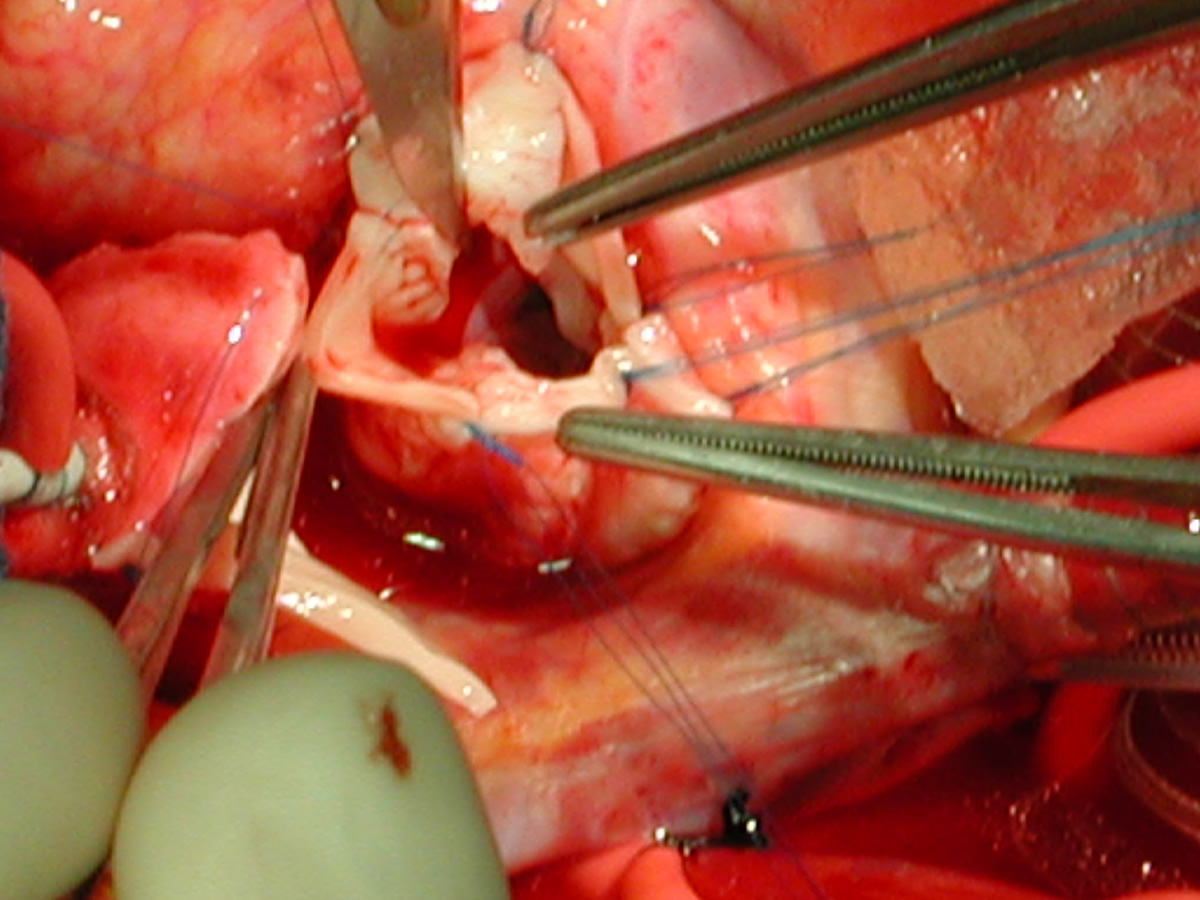

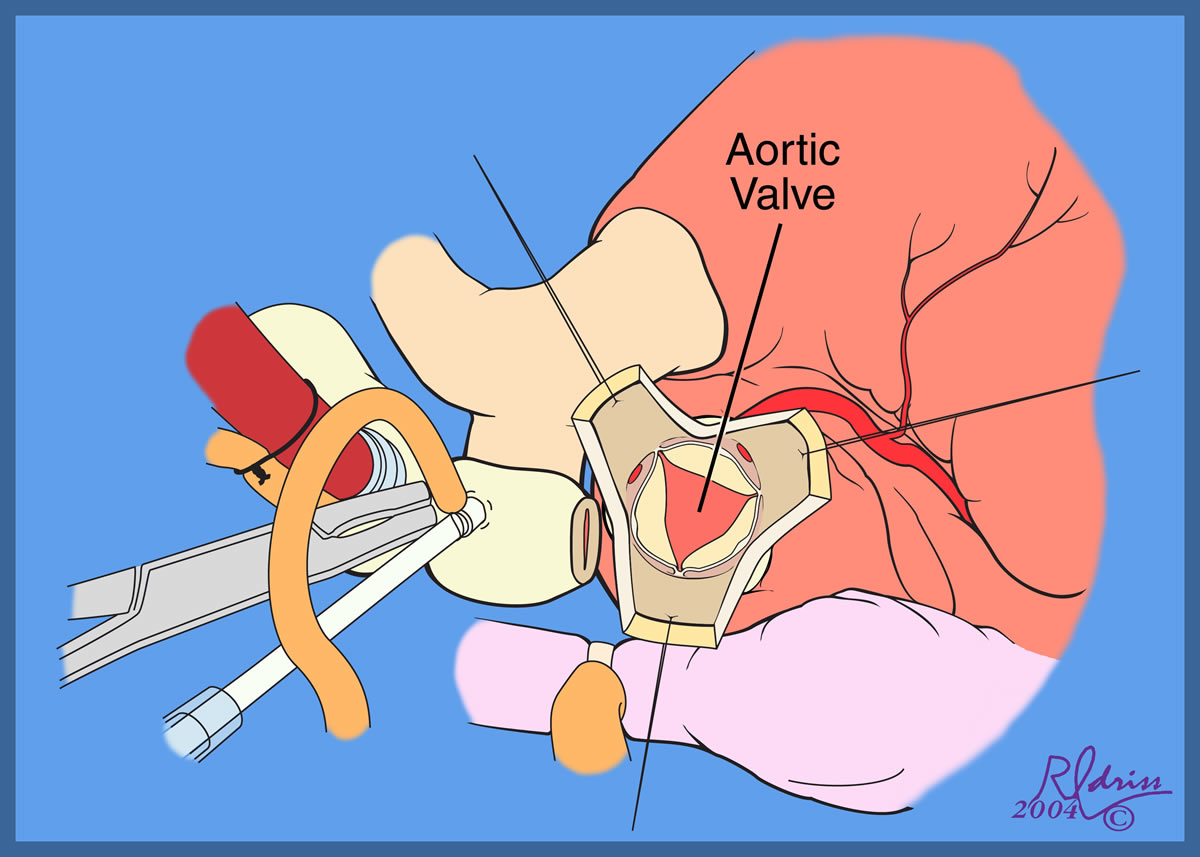

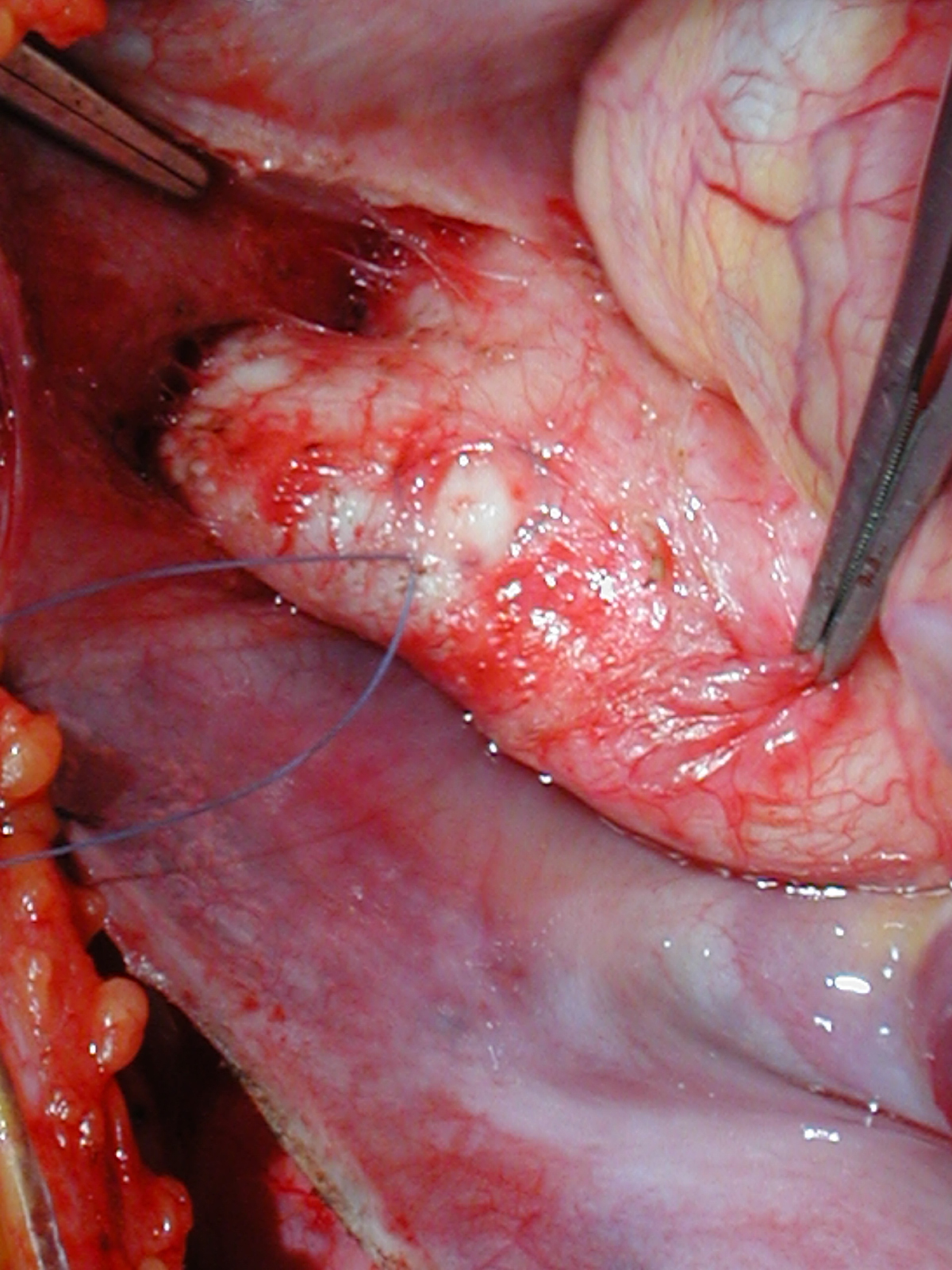

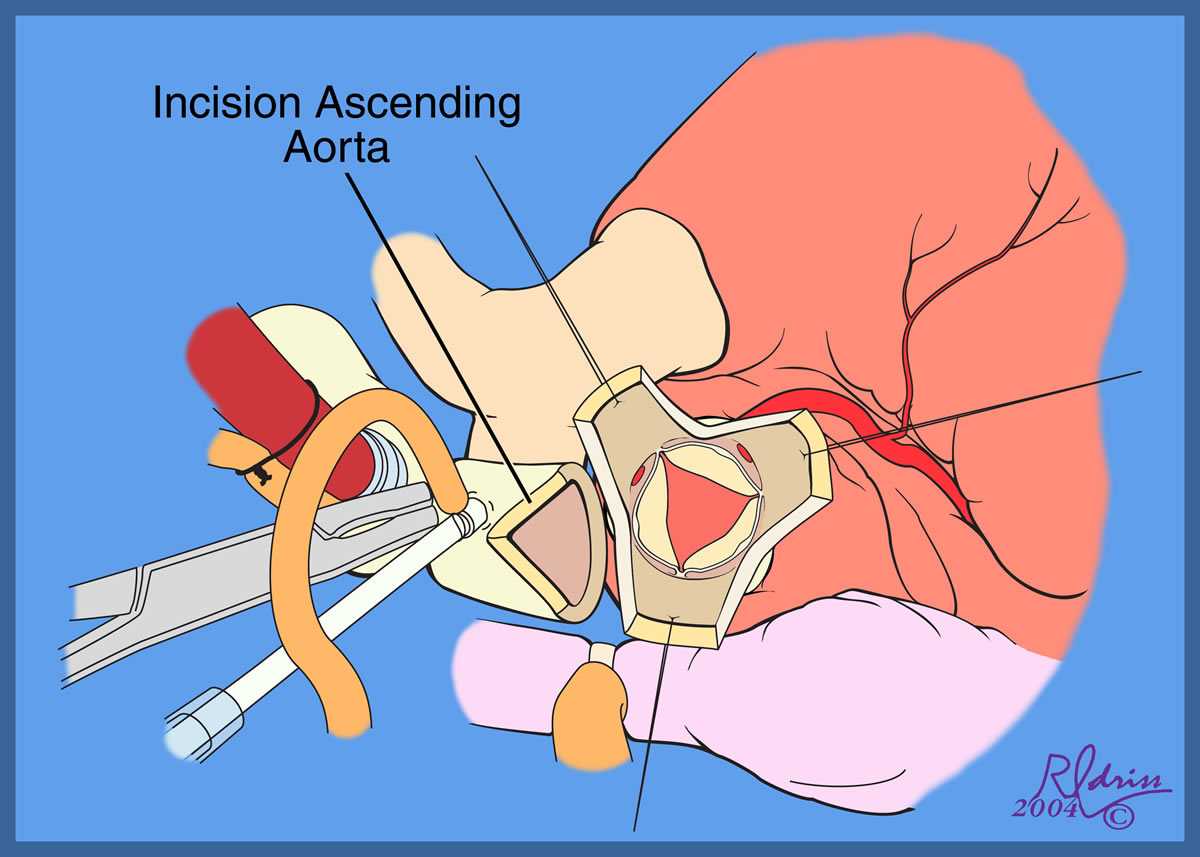

Figures 24 & 25: An incision is performed in the distal ascending aorta so that the orifice of the completed distal reconstruction will correspond in size to the proximal reconstructed aorta.		Figures 26 & 27: A shield-shaped patch is being placed in the incision in the proximal ascending aorta - noncoronary cusp. Suturing is with 7-0 polypropylene suture. The patch should not be too wide, becaus this will lead to commissural stretching and loss of central coaptation with reultant aortic valve insufficiency.

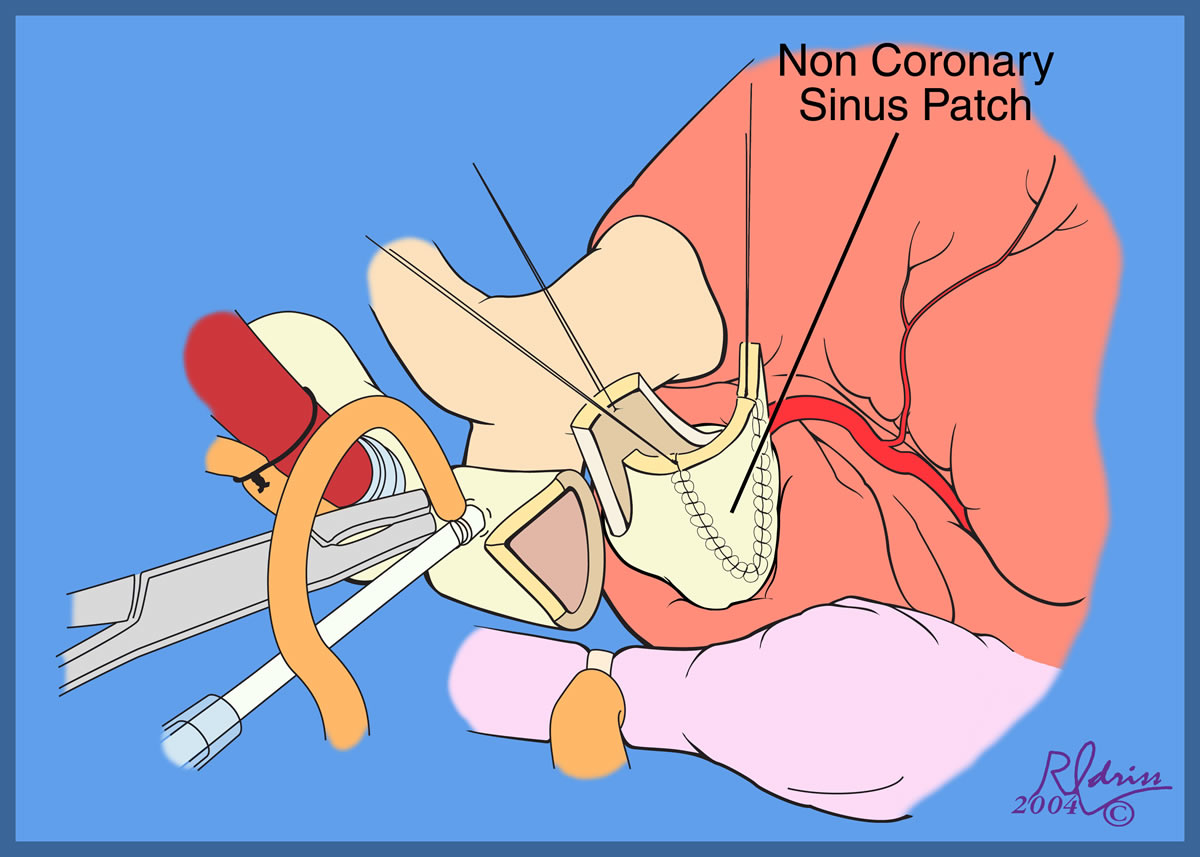

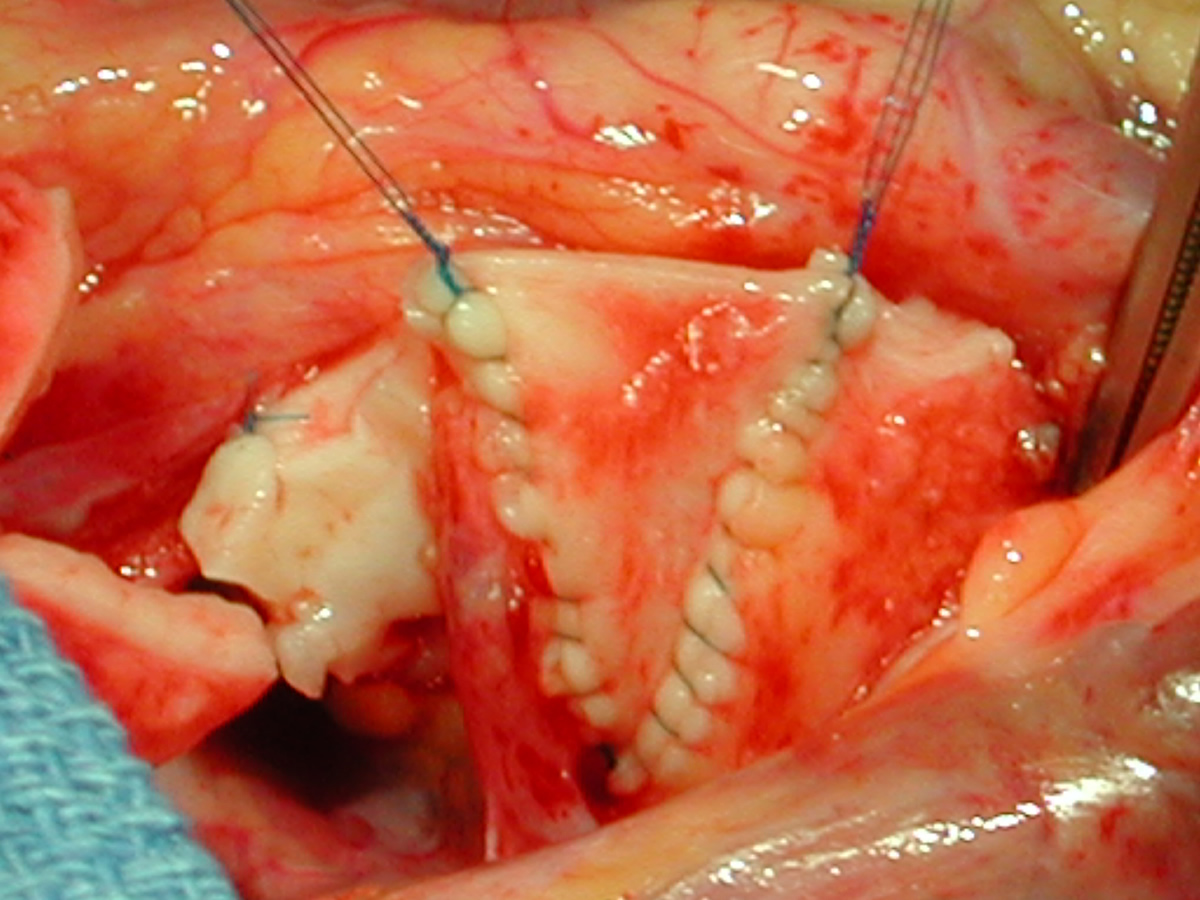

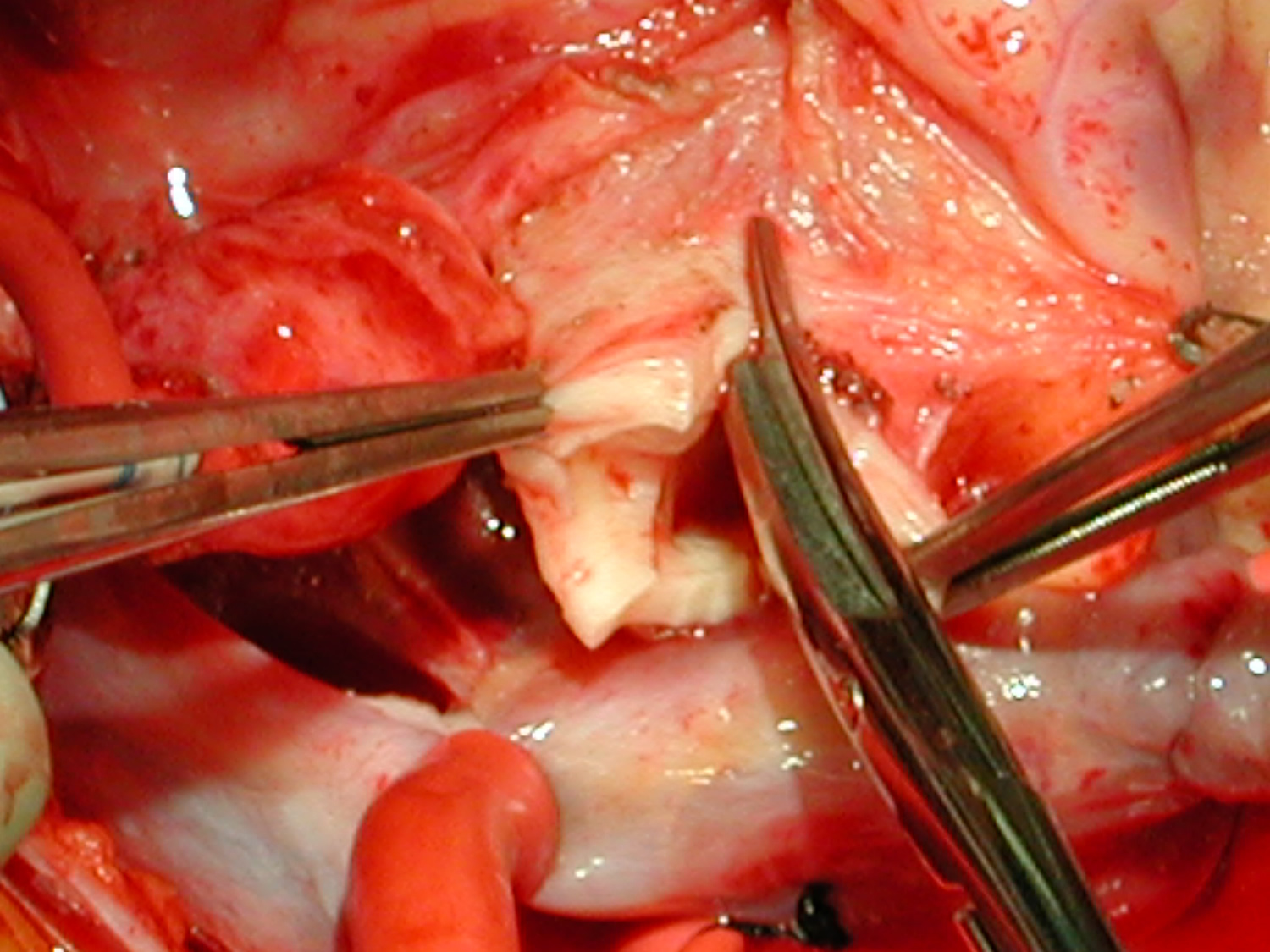

Figures 28 & 29: Completed noncoronary cusp patch.		Figure 30: A portion of thick intimal hyperplasia adjacent to the left coronary orifice is sharply resected with a no. 11 blade.	Figure 31: Completed resection showing no residual intimal thickness.

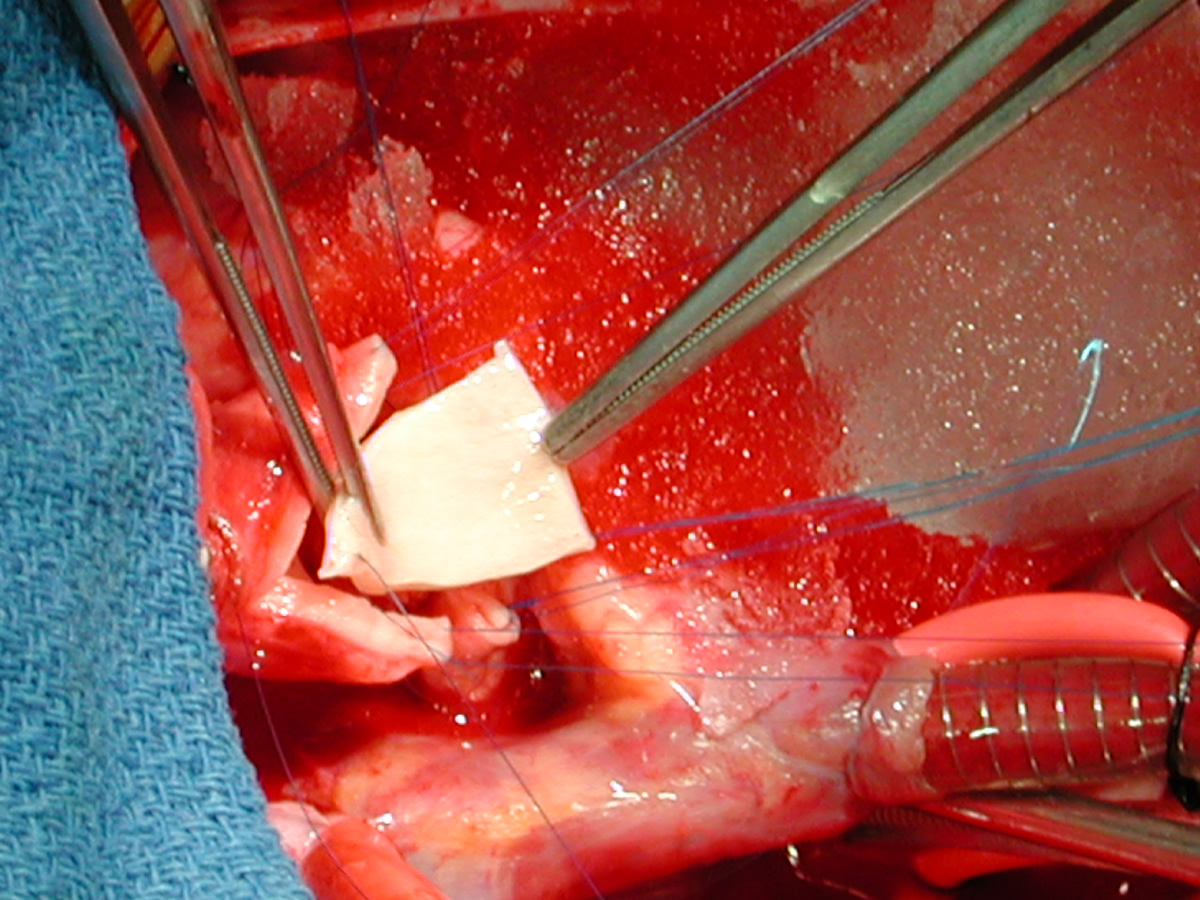

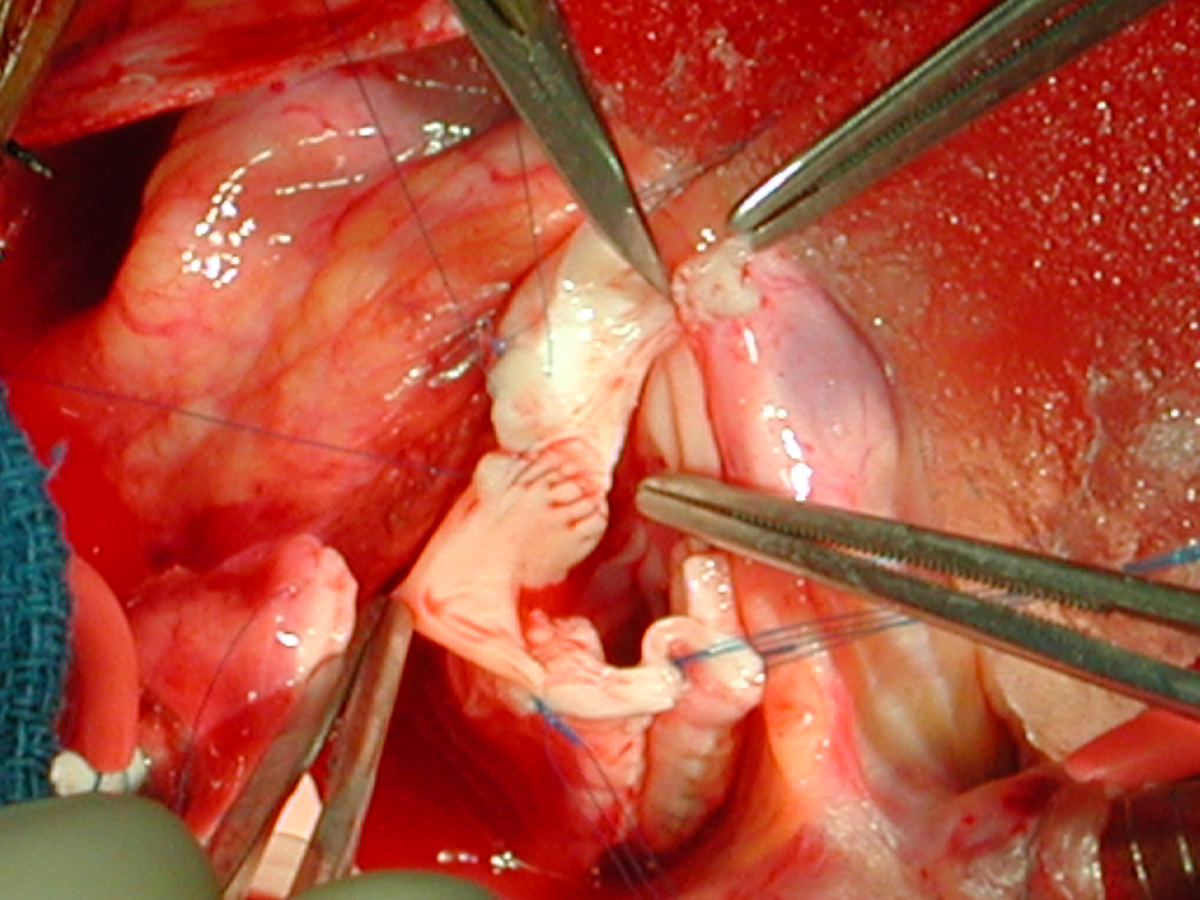

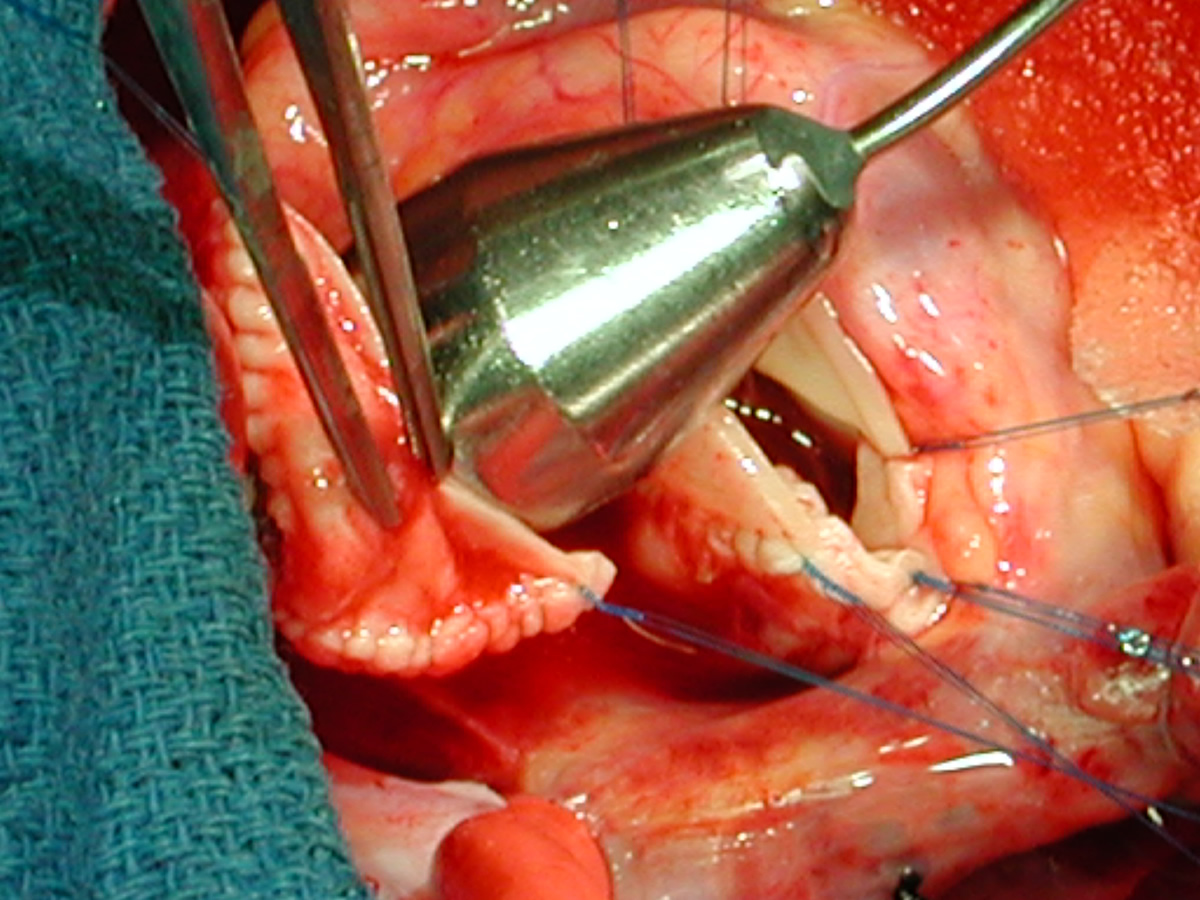

Figures 32 & 33: Shield-shaped homograft patch is being sutured into the incision in the distal ascending aorta to augment the ascending aorta.		Figure 34: 16-mm dilator passes easily through reconstructed proximal ascending aorta. This also shows the three complteed patches in the proximal aorta.	Figure 35: The same dilator passes into the distal ascending aorta.

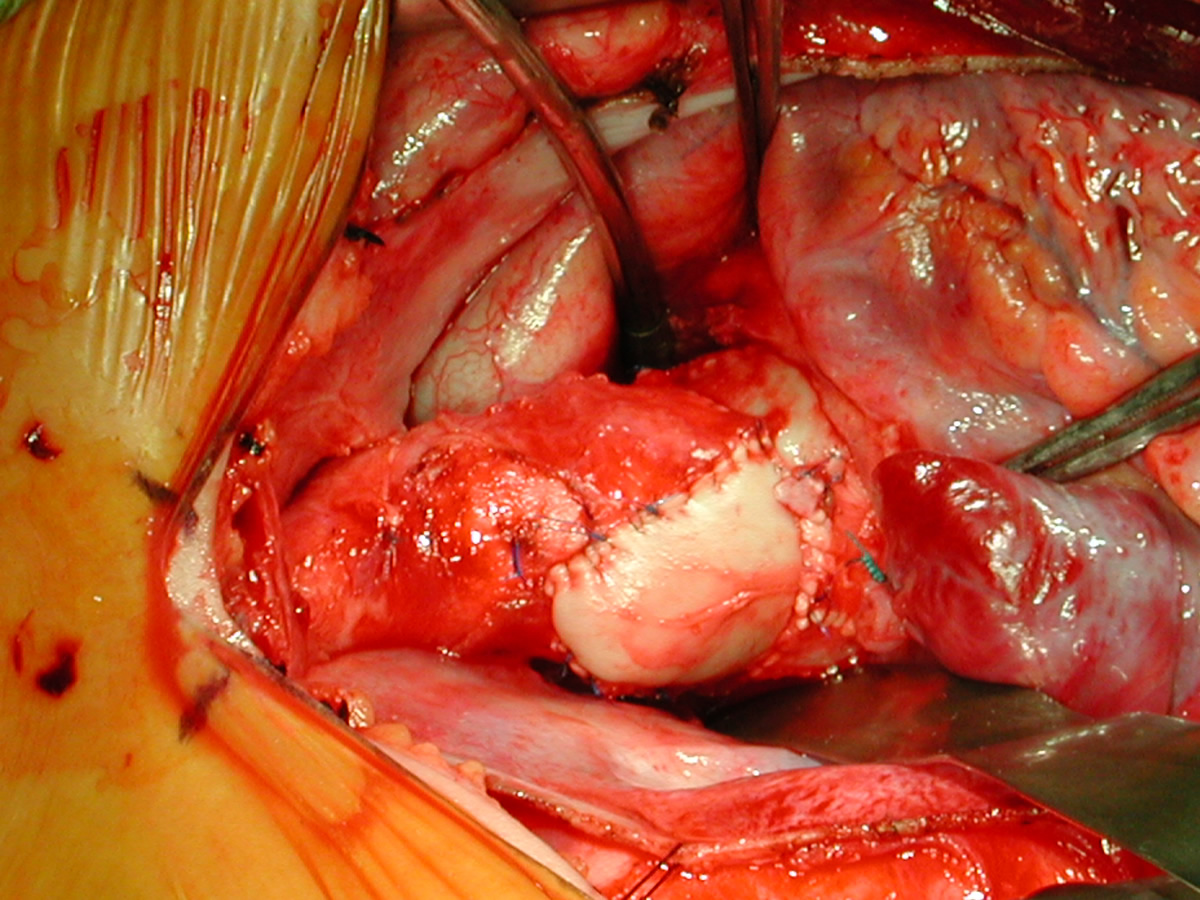

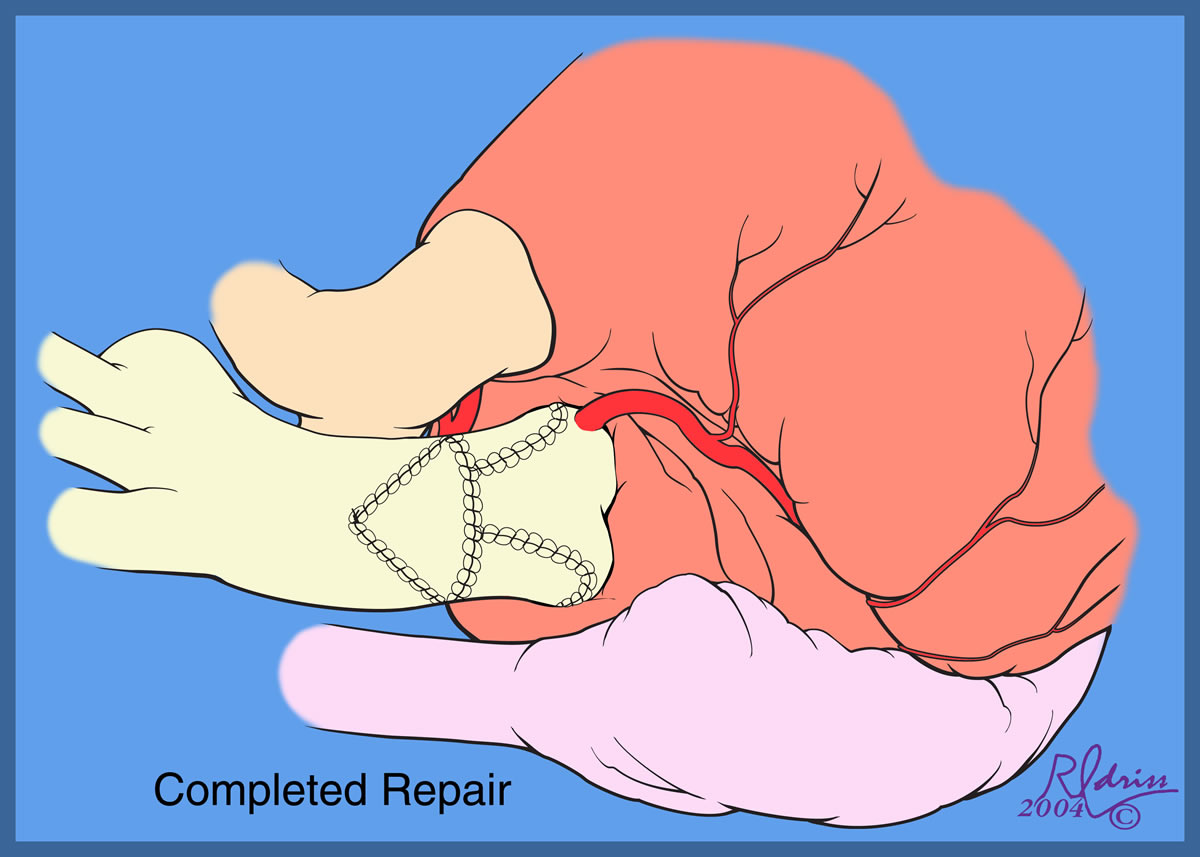

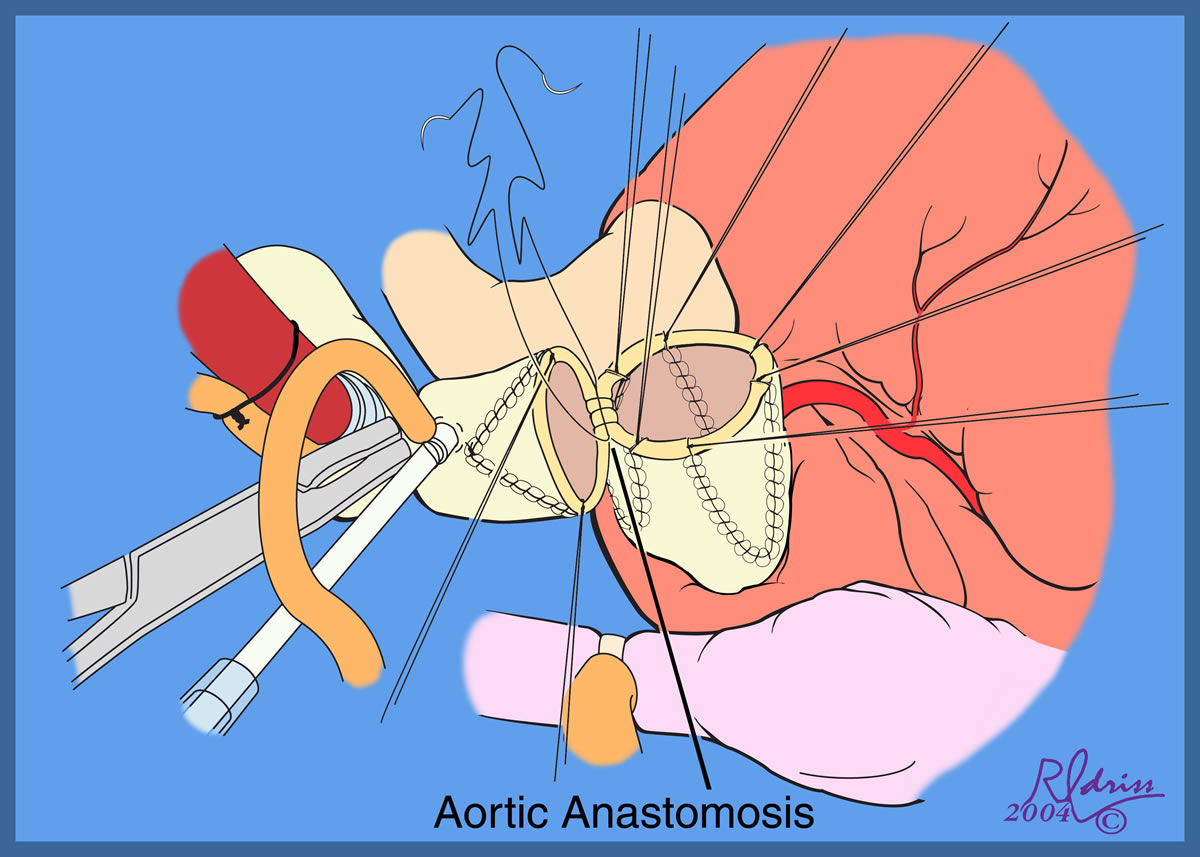

Figures 36 & 37: Aortic anastomosis is being performed with 6-0 running polypropylene suture.		Figures 38 & 39: Completed aortic anastomosis. Patient is now off bypass and has been dcannulated. Postoperative TEE shows trivial aortic insufficiency. Postoperative left ventricular and aortic pressure measurements were equal, indicating no residual gradient.

Tips & Pitfalls

• High ascending aortic cannulation adjacent to the innominate artery for maximum exposure of the ascending aorta and to allow length for positioning of the patch in the ascending aorta.
• One dose of antegrade cardioplegia followed by retrograde cardioplegia.
• Pulmonary homograft or pericardial patches (tanned in glutaraldehyde) for the “shields”.  These patches should not be too large – this will lead to aortic insufficiency.
• First coronary sinus incision in noncoronary sinus to facilitate exposure of the incisions into the coronary orifice sinuses.
• In most cases, the right coronary artery sinus should be opened to the left of the coronary orifice and the left coronary artery sinus to the right of the coronary orifice. Occasionally one may not have enough room between a coronary orifice and the aortic valve; in this case the incision site should be tailored to the situation.
• Ensure similar orifice sizes between the proximal and distal ascending aorta after patch augmentation by the use of a sizing dilator.
• Transesophageal echocardiography to assess completeness of repair, coronary blood flow postoperatively, wall motion abnormalities, and adequacy of aortic valve.

Results

The results of the three-patch aortoplasty technique are shown in Table 2.  The report by Stamm and associates from Boston Children’s Hospital, in particular, compared the results of single-patch, bifurcated-patch, and three-sinus reconstruction [7].  Results improved greatly after the introduction of the three-sinus technique, a more symmetric reconstruction of the aortic root.  Residual gradients were lower, hemodynamics were superior, and there was a reduction in both mortality rate and need for reoperation.

Table 2.  Results of three-sinus incision technique
