Hybrid OR Example--The Cardiovascular Hybrid OR–Clinical and Technical Considerations

Thursday, March 11, 2010

By

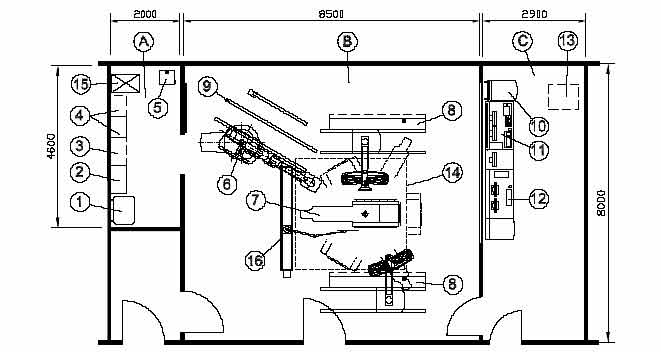

Pos. A. Equipment room Pos. B Examination room Pos C. Control room
1. Floor stand cabinet
2. Generator
3. Cable cabinet (option)
4. System control cabinet
5. Cooling unit
15. USV
6. Floor stand
7. Patient table
8. DCS PRO
9. Floor stand overhead carriage
14. LAF Ceiling
16. Flexible radiation protection
10. Imaging System
11. Control console
12. Measuring station
13. Hardcopy
