LUNG CANCER
A Handbook for Staging, Imaging, and Lymph Node Classification
by Clifton F. Mountain, MD; Herman I. Libshitz, MD; and Kay E. Hermes
Contents | About the Author(s) | Dedication and Acknowledgment
 Illustrations and Imaging
page 21

T4

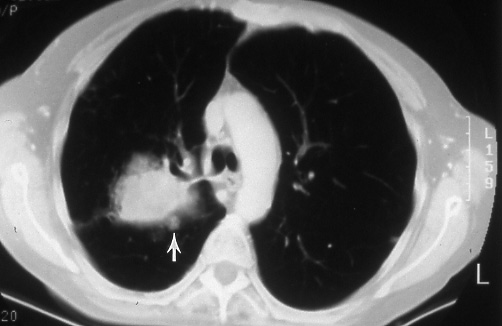

Fig. 20: Satellite nodule in primary tumor lobe. Computed tomographic scan showing a right upper lobe bronchogenic carcinoma with a small satellite nodule (arrow), T4.

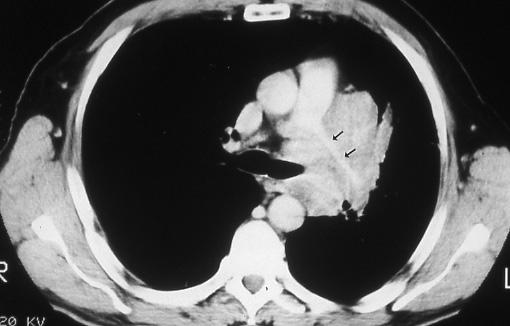

Fig. 21: Computed tomographic scan of the chest showing an extensive cancer in the left lung extending into the mediastinum, pericardium, and compressing the left pulmonary artery (black arrows), T4.
